Domestic hot water (DHW) storage tank MHWT 200 HP & MHWT 300 HP

Name: Domestic hot water (DHW) storage tank MHWT 200 HP & MHWT 300 HP
Brand: Myсond - HVAC systems

Hot water tanks provide a high level of comfort in the DHW system of private households. Our hot water storage tanks are specially designed for heat pumps. A large heating surface area ensures rapid heat transfer with maximum efficiency

Want to buy or have questions?

Domestic hot water (DHW) storage tank MHWT 200 HP & MHWT 300 HP

Mycond

Buffers and tanks

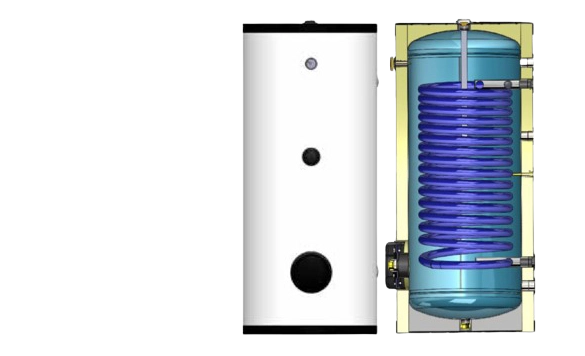

MyCond MHWT 200 HP & MHWT 300 HP Efficient DHW storage tanks for optimal performance.

Key benefits

Special design for heat pump
The most popular sizes for private households – 200 L and 300 L
Heating surface area 2.^9m2 for 200 L and 3.99^m2 for 300 L
Heating surface area is 20% larger compared to the other manufacturers
Effective thermal insulation (thickness 50 mm) and external PVC casing
Inner thread 1 ½’ for immersion heater
Corrosion protection anode
Inspection flange

Parameters	Unit	MHWT 200 HP	MHWT 300 HP
Volume	L	200	300
Height	mm	1320	1815
Diameter	mm	590	590
Weight	kg	89	114
Heating surface	^m2	2.9	3.99
Hot/cold water connection	inch	¾”	1”
Heat exchanger connection	inch	1”	1”
Circulation connection	inch	1”	1”
Immersion heater	inch	1 ½” (option)	1 ½” (option)
