MRF 6

The standard VRF system range, MRF-6, has undergone an expansion, now enabling a higher nominal system capacity of up to 168 kW. With the latest iteration of the MRF-6, it’s now feasible to combine three substantial outdoor units, each boasting a capacity of 204 kW
Array 204 kW
Array 219 kW

Array

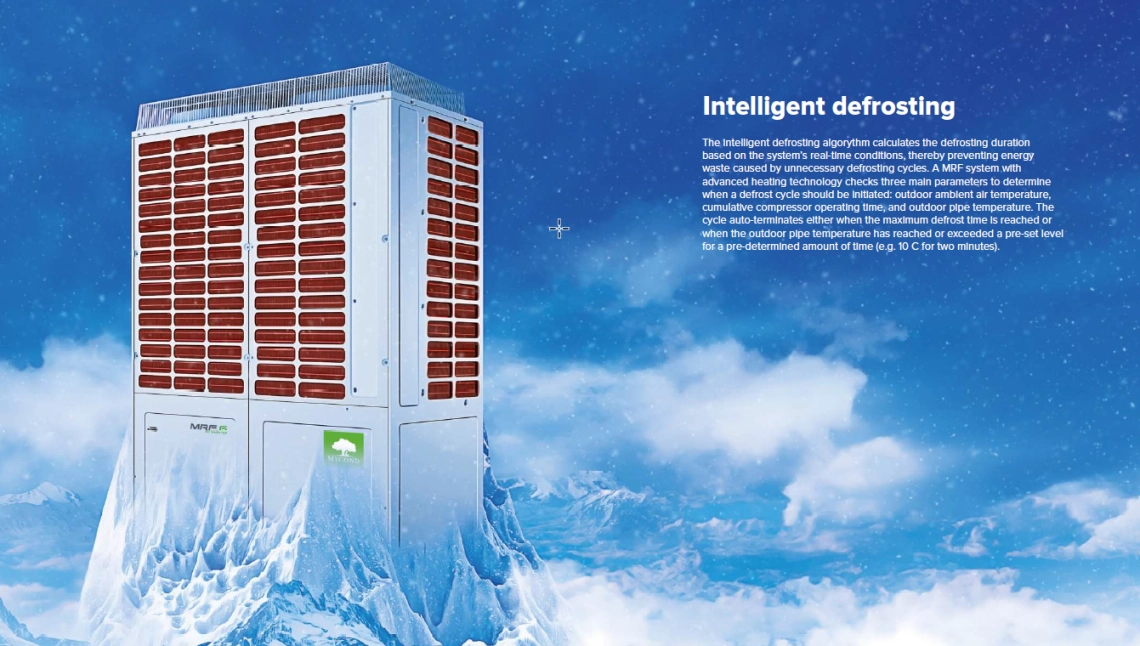

MRF 6

These improvements result in MRF-6 systems becoming more robust and versatile, creating opportunities for tackling larger and more intricate air conditioning and cooling projects.

Сompressor technologies

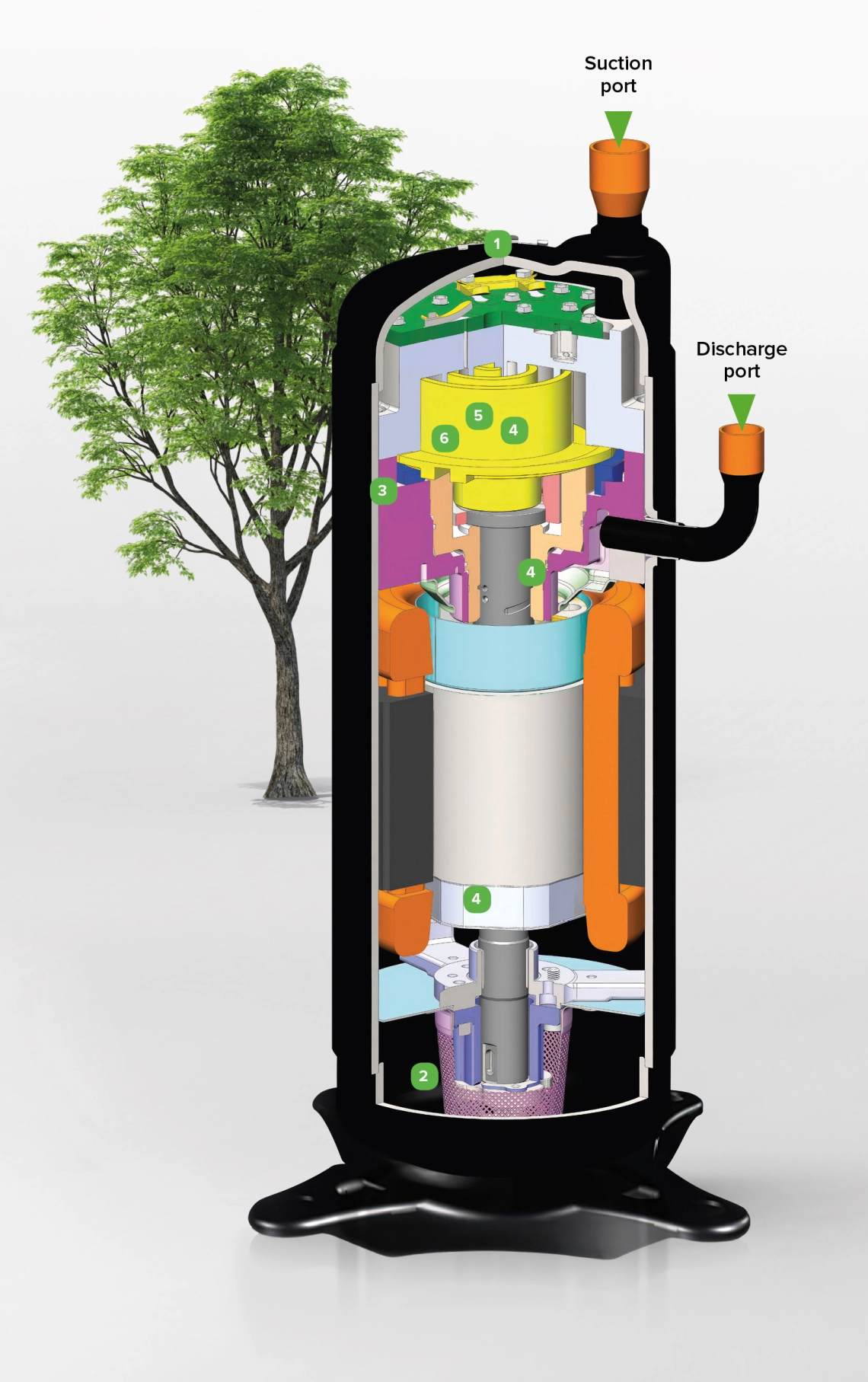

The new MRF series features advanced scroll compressors with two additional discharge valves. The new construction allows optimal pressure control inside the compressor. Due to this enchancement, the stability of operations at high and low revolution speeds has been significantly improved. And low level of discharge pressure pulsations was reached. Improved operating parameters increase the service life of the compressor and reduce energy consumption of systems as a whole

  1. Relief Valve technology. By releasing over compression during the compressing process, this technology reduces compression loss to improve compressor performance and efficiency when operating in the compression area.
  2. High Efficiency oil Lubrication Technology. The oil lubrication supply is designed to ensure the oil film efficiency of the bearing under all operating conditions, including low operating speed, by utilizing pressure difference supply technology.
  3. Frame Compliance Mechanism Technology. This mechanism has been designed to operate moving parts at precise thrust forces (by using two middle pressure chambers to balance the force for each part), resulting in improved compressor reliability by allowing it to operate at higher condensing temperatures of up to 65°C for an indefinite period of time, as well as higher compressor performance with lower power input by minimizing friction loss to its bare minimum.
  4. Low Vibration Technology. Vibration is reduced by balancing rotating parts in mechanical and rotor systems that range in speed operation from low to high resulting in finer vibration and lower noise.
  5. Asymmetric Scroll Technology. The scroll part was designed to reduce leak loss of low refrigerant flow at suction side and leak loss at low compression ratio conditions, resulting in more stable refrigerant discharge flow.
  6. Oval Scroll Technology. Oval Scroll Technology (Mitsubishi’s patent), allows for greater stroke volume and capacity in the same unit size by transforming a typical scroll shape into an oval.

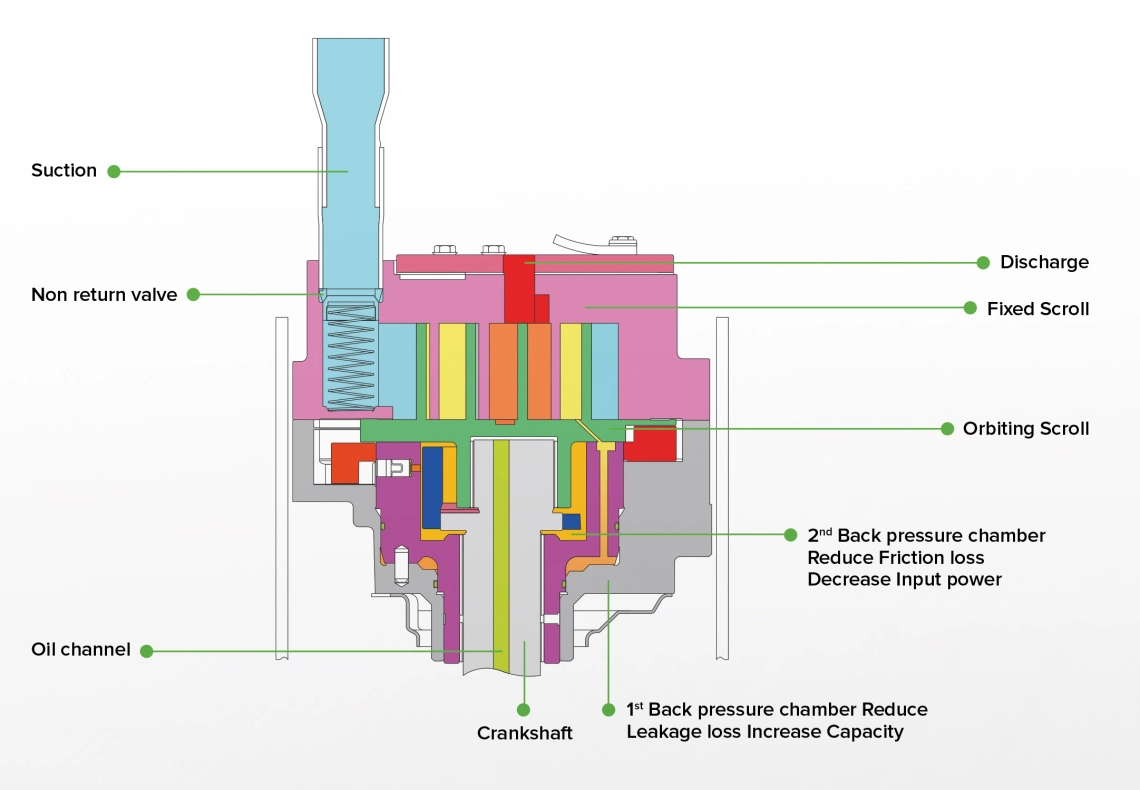

Advanced scroll compressor using asymmetric technology for increased efficiency.

The image displays Mitsubishi's patented Oval Scroll Technology, enhancing compressor capacity and efficiency in the MRF-6 series.

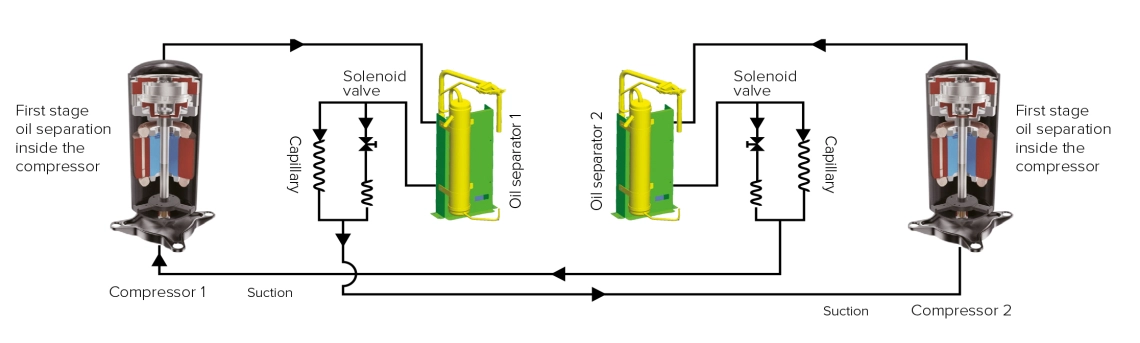

Oil return efficiency

If the compressor operate at low frequency, oil return is only through the capillary. If the compressor operate at high frequency, oil return is through the capillary and solenoid valve. Oil cross-change technology performs equalizing of oil level in multi-compressor units.

Diagram illustrating oil return efficiency in MRF 6 compressors.

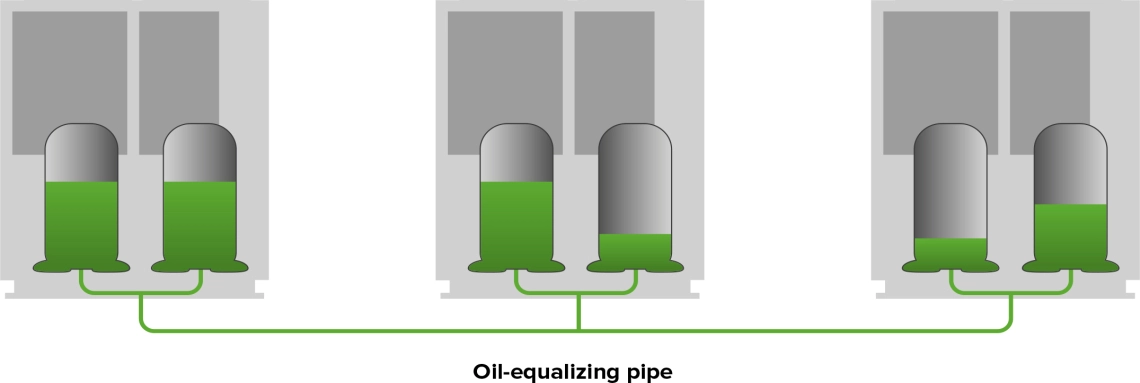

Oil level control

Additional pipe is used for oil equalizing between the outdoor units in multi unit combination. This technology guarantees a normal oil level in all compressors of all outdoor units.

An enhanced oil level control system for improved efficiency.

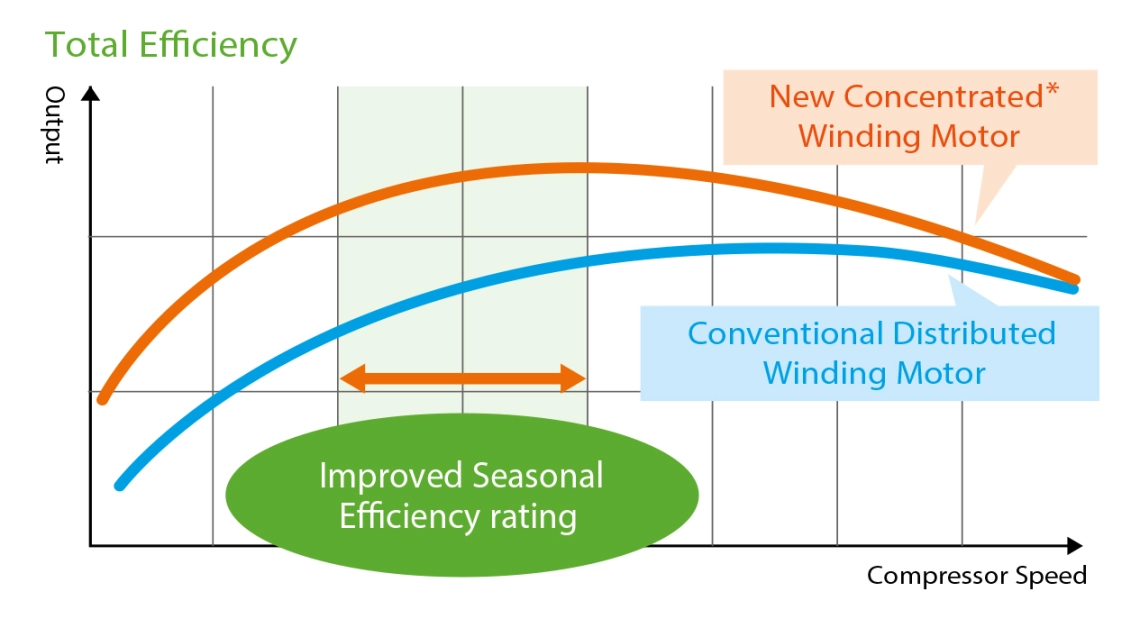

Concentrated winding motor achieves “High Output” and “Total Efficiency Improvement”

The newly designed high performance CPU enables high precision optimization for compressor speed, which leads to concentrated winding motor use. Our product achieves high output and better energy saving effects and in particular improves seasonal efficiency rating.

Efficient motor technology for low energy consumption.

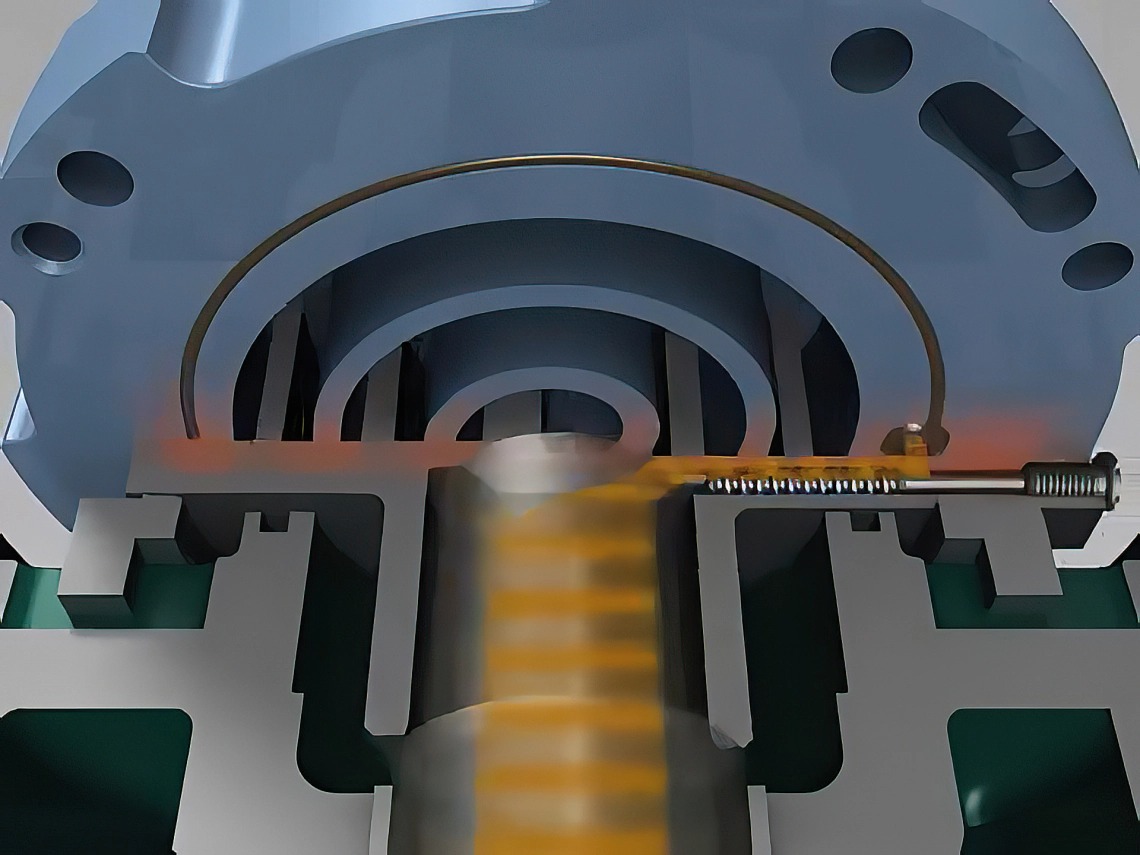

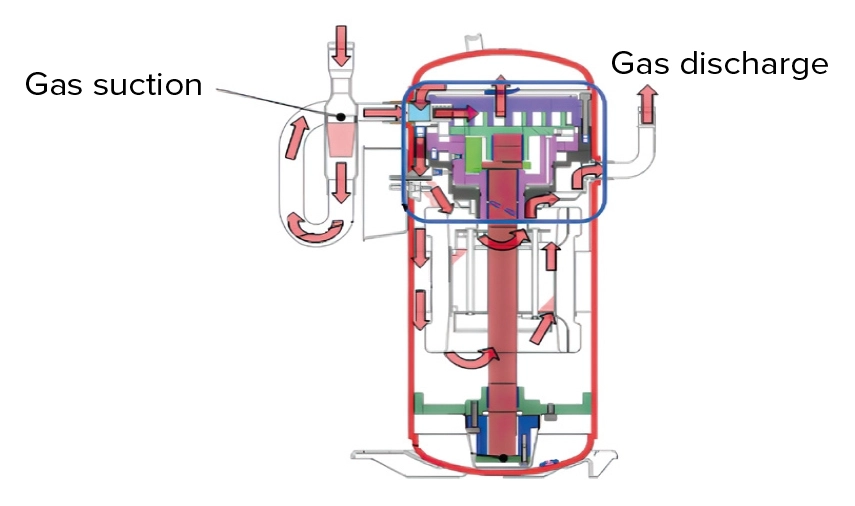

Discharge optimization

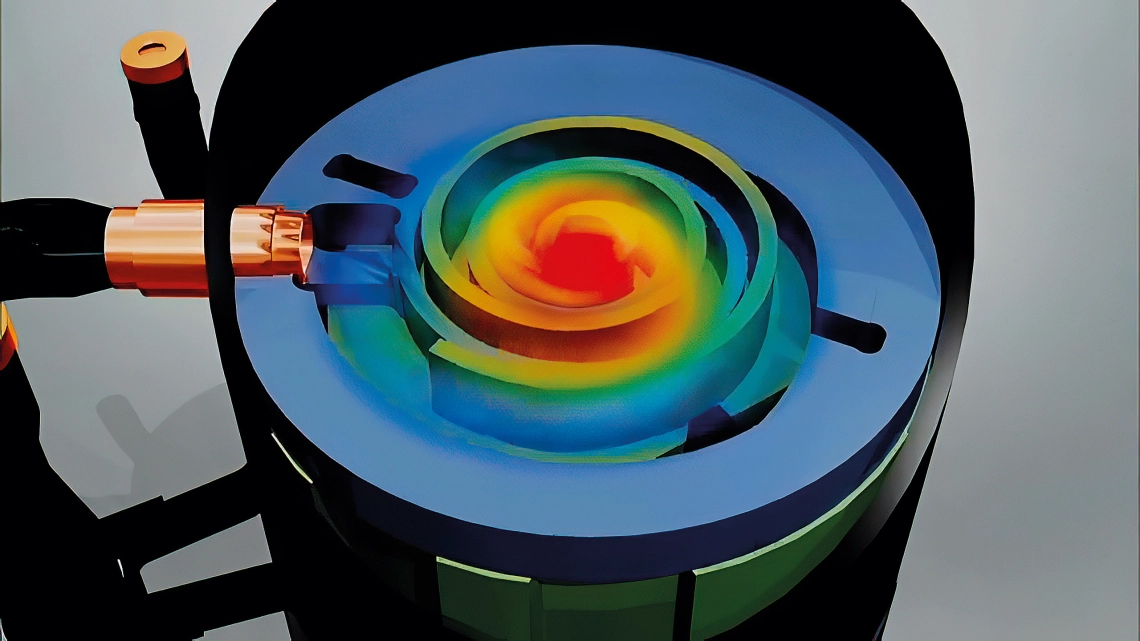

The introduction of a new multiport discharge area within the compressor represents a significant enhancement in pressure control, offering improved balance and optimization. This innovation has led to notable performance improvements, particularly in the medium frequency range, resulting in higher annual efficiencies for the system.

Scroll compressor with enhanced discharge valves for improved HVAC efficiency.

Daikin inverter scroll compressor for energy-efficient climate control.

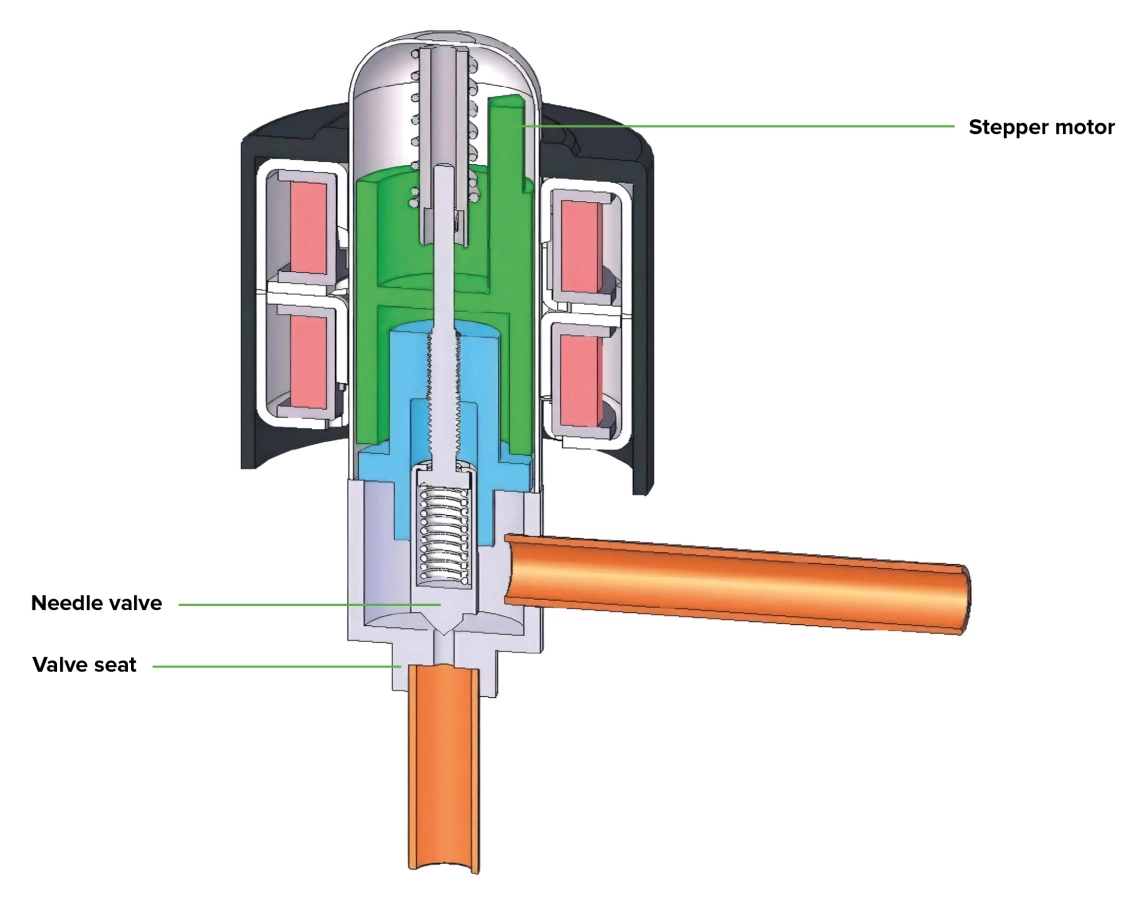

Electronic expansion valve control technology ​ ​

Electronic expansion valves are set for all the ODUs and IDUs To ensure effective refrigerant distribution among ODUs and IDUs, achieve the same effect and comfort in different rooms.

Advanced technology used in ventilation systems.

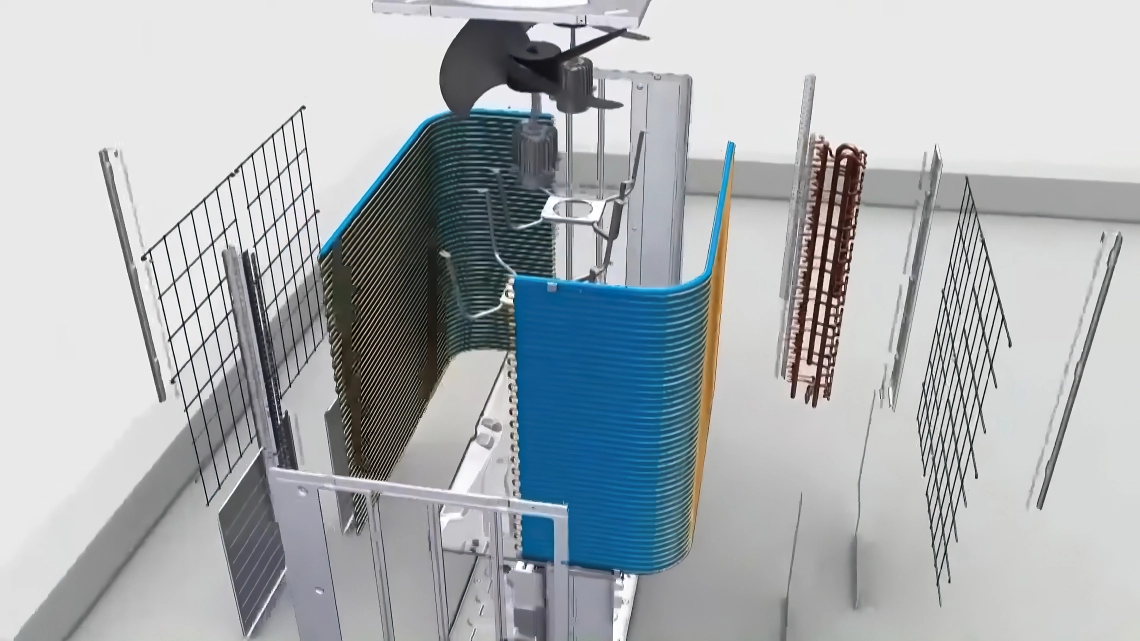

​Sectional heat exchanger design

Sectional heat exchanger can ajust its capacity depending on current load. This construction allows operation with the low loads (when only 1-2 indoor units operate, e.g.)

Cross-section view of a modular heat exchanger design.

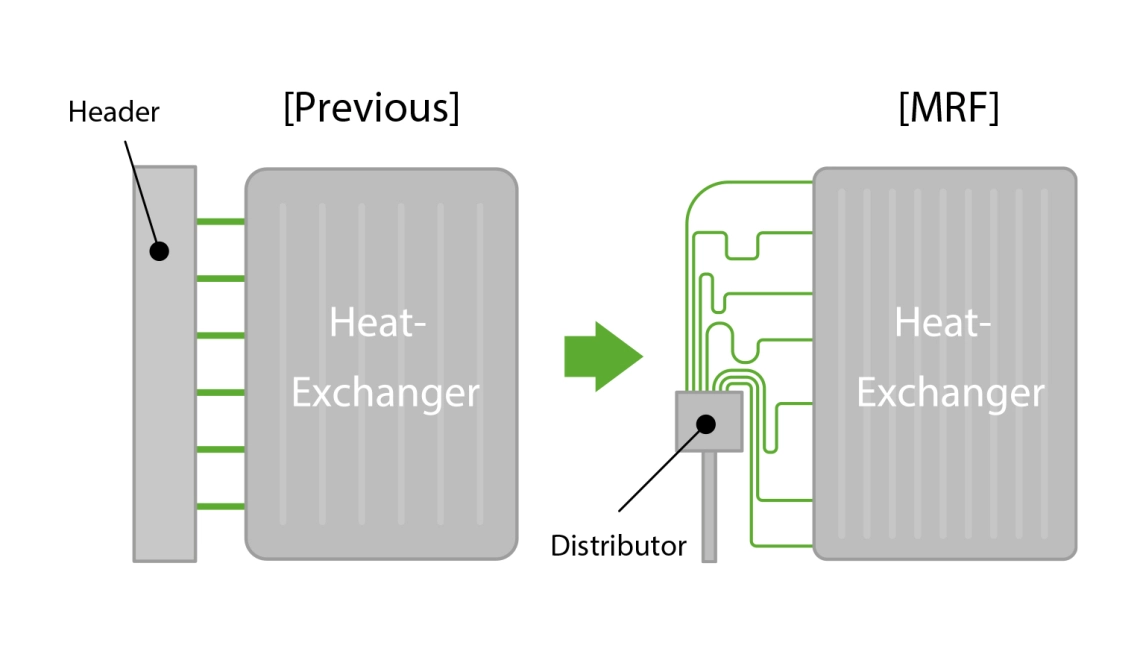

Improved Heat-exchanger

With piping layout rearranged from header to heat exchanger, refrigerant distribution flow has improved and maximum energy efficiency has been achieved. Heat
exchanger has improved refrigerant distribution and increased effectiveness. Furthermore due to expansion of effective heat transfer area in heat exchanger, energy efficiency has increased.


Improved heat exchanger design for the MRF 6 system.

MRF-6 system's advanced scroll compressors enhance robustness and versatility for air conditioning projects.

High reliability

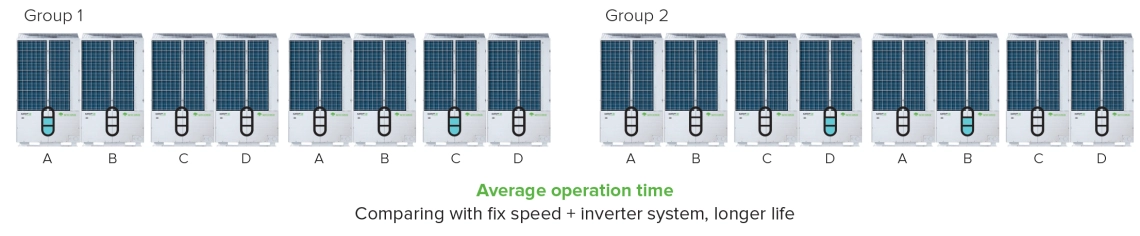

Recycling operation
Recycling operation, longer life of compressor

Image of a scroll compressor showcasing its high reliability features.

Multiple modes available to meet the needs of different users

Operation mode: cooling priority, heating priority, cooling only, heating only, and VIP priority.

Silent mode: seven-position silent mode available (night time silent mode and six-position silent mode).

Static pressure mode: No static pressure mode, low static pressure mode, medium static pressure mode, and high static pressure mode.

Wall-mounted MRF 6 dehumidifier for efficient air moisture control.

Compressor double protection

Base on the basic gas discharge sensor, MOV 6 add the oil temperature sensor at the bottom of compressor.
Main functions of the oil temperature sensor

  • Control the on/off of crankcase heater, preventing from the liquid shock of compressor
  • Judge if the liquid refrigerant enter into the compressor during operation
  • Oil overheating prevention
  • High pressure sensor for every compressor so for the module with
  • 2 compressors, there are 2 high pressure sensors and 1 low pressure sensor

Thunder protection

There is surge arrester in the terminal block to avoid high voltage peaks.

Surge arrester for thunder protection in HVAC systems.

Technical characteristics

T1 3PH/380~400V/50(60)Hz

Single Module: 8/10/12/14/16HP

Specifications Units MOV6-08X1EW1AD MOV6-10X1EW1AD MOV6-12X1EW1AD MOV6-14X1EW1AD MOV6-16X1EW1AD
/ / / / /
Combination model / / / / /
/ / / / /
Capacity range Hp 8 10 12 14 16
Capacity Cooling kW 25.2 28 33.5 40 45
heating kW 27.3 31.5 37.5 45 50
Power supply Ph/V/Hz 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60
Rated power input kW 5.79 7.00 8.59 10.26 11.90
Cooling Max power input kW 14.02 14.38 14.73 16.91 22.68
Rated current A 9.57 11.56 14.19 16.94 19.66
Electrical parameters Max current A 23.09 23.68 25.1 28.4 36.8
Rated power input kW 6.00 7.08 8.72 10.71 12.05
Heating Max power input kW 12.72 13.23 13.68 15.60 17.20
Rated current А 9.91 11.69 14.40 17.69 19.90
Max current А 20.95 21.79 22.1 25.2 27.88
EER 4.35 4.00 3.90 3.90 3.78
COP 4.55 4.45 4.30 4.20 4.15
SEER 7.13 6.95 6.84 6.48 5.99
SCOP 5.15 5.08 4.98 4.73 4.16
Air flow cooling/heating m³/h 15000/13200 15000/13200 15000/:13200 15000/13200 15600/14400
Performance Sound pressure level dB(A) 57 57 59 59.5 61
Sound power level dB(A) 73 73 75 76 77
External dimensions (W/D/H) mm 1350×720×1690 1350×720×1690 1350×720×1690 1350×720×1690 1350×720×1690
Shipping dimensions (W/D/H) mm 1450×826×1885 1450×826×1885 1450×826×1885 1450×826×1885 1450×826×1885
Net/Shipping weight kg 269/305 269/305 269/305 275/311 323/359
Compressor type DC INV. SCROLL
Compressor brand MITSUBISHІ ELECTRIC
Compressor quantity 1INV
Refrigerant type R410A
Refrigerant charge kg 9.7 9.7 9.7 10 10
Refrigerant liquid pipe mm 9.52 9.52 12.7 12.7 12.7
Installation Refrigerant gas pipe mm 19.05 22.22 25.4 25.4 28.58
Oil equalization pipe mm 9.52 9.52 9.52 9.52 9.52

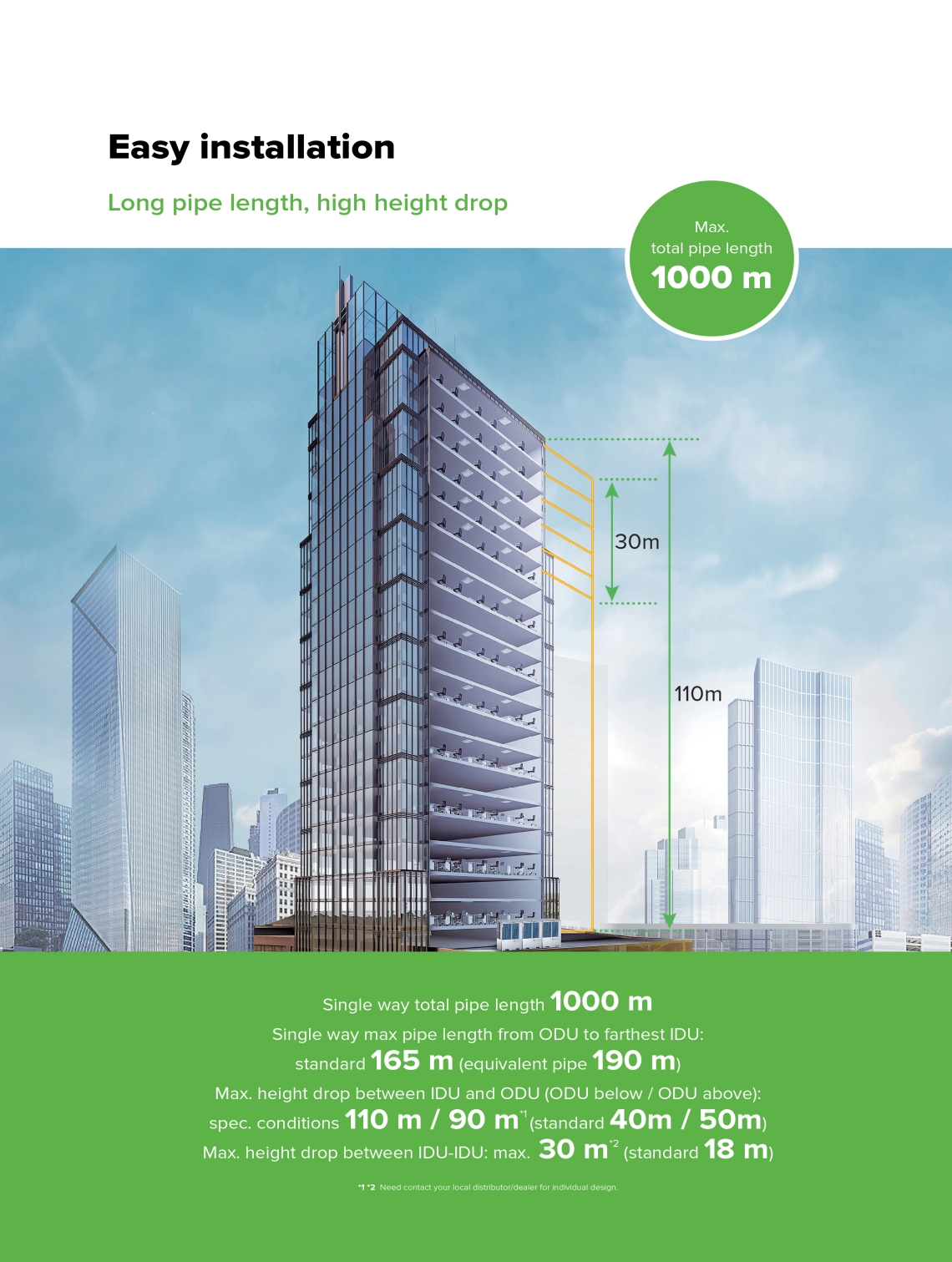

Max.total pipe length m 1000 1000 1000 1000 1000
Max. pipe length
(Equivalent/Actual)
m 190/165 190/165 190/165 190/165 190/165
Max drop between I.U.&O.U
(O.U up/down)1
m 90/110 90/110 90/110 90/110 90/110
Standard drop between I.U.&O.U2 m 50/40 50/40 50/40 50/40 50/40
Max drop between I.U3 m 30 30 30 30 30
Standard drop between I.U4 m 18 18 18 18 18
External static pressure Pa 82 82 82 82 82
Connection ratio Connectable indoor unit ratio % 50-160 50-160 50-160 50-160 50-160
Maximum number of indoor units 18 20 24 29 33
Working temp. Cooling(DB) °C (-5...50) (-5...50) (-5...50) (-5...50) (-5...50)
Heating(WB) °C (-23...21) (-23...21) (-23...21) (-23...21) (-23...21)
Specifications Units MOV6-18X1EW1AD MOV6-20X1EW1AD MOV6-22X1EW1AD MOV6-24X1EW1AD
/ / / /
Combination model / / / /
/ / / /
Capacity range Hp 18 20 22 24
Capacity Cooling kW 50.4 56 61.5 68
heating kW 56.5 63 69 73
Power supply Ph/V/Hz 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60
Rated power input kW 13.62 15.56 17.57 19.71
Cooling Max power input kW 22.10 25.19 30.56 37.47
Rated current A 22.50 25.69 29.02 32.55
Electrical parameters Max current A 36.15 41.1 49.65 60.45
Rated power input kW 13.95 15.95 18.16 19.47
Heating Max power input kW 22.68 25.19 27.72 28.62
Rated current А 23.04 26.34 29.99 32.15
Max current А 37.8 42 46.05 47.4
EER 3.70 3.60 3.50 3.45
COP 4.05 3.95 3.80 3.75
SEER 6.13 6.00 5.88 5.69
SCOP 4.27 4.19 3.99 3.87
Air flow m³/h 16200/15000 16200/15000 16200/15000 16200/15000
Performance Sound pressure level dB(A) 62 62 62 63
Sound power level dB(A) 79 79 79 80
External dimensions (W/D/H) mm 1350×720×2048 1350×720×2048 1350×720×2048 1350×720×2048
Shipping dimensions (W/D/H) mm 1450×826×2225 1450×826×2225 1450×826×2225 1450×826×2225
Net/Shipping weight kg 354/400 354/400 380/426 380/426
Compressor type DC INV. SCROLL
Compressor brand MITSUBISHІ ELECTRIC
Compressor quantity 2INV
Refrigerant type R410A
Refrigerant charge kg 10 10 10 10
Refrigerant liquid pipe mm 15.88 15.88 15.88 15.88
Installation Refrigerant gas pipe mm 28.58 28.58 28.58 28.58
Oil equalization pipe mm 9.52 9.52 9.52 9.52
Max.total pipe length m 1000 1000 1000 1000
Max. pipe length
(Equivalent/Actual)
m 190/165 190/165 190/165 190/165
Max drop between I.U.&O.U
(O.U up/down)1
m 90/110 90/110 90/110 90/110
Standard drop between I.U.&O.U2 m 50/40 50/40 50/40 50/40
Max drop between I.U3 m 30 30 30 30
Standard drop between I.U4 m 18 18 18 18
External static pressure Pa 82 82 82 82
Connection ratio Connectable indoor unit ratio % 50-160 50-160 50-160 50-160
Maximum number of indoor units 37 41 45 49
Working temp. Cooling(DB) °C (-5...50) (-5...50) (-5...50) (-5...50)
Heating(WB) °C (-23...21) (-23...21) (-23...21) (-23...21)

Combination Module: 26-48HP
(2 modules)

T1 3PH/380~400V/50(60)Hz

Specifications Units MOV6-28X1EW1AD MOV6-30X1EW1AD MOV6-32X1EW1AD
MOV6-12X1EW1AD MOV6-14X1EW1AD MOV6-14X1EW1AD MOV6-14X1EW1AD
Combination model MOV6-14X1EW1AD MOV6-14X1EW1AD MOV6-16X1EW1AD MOV6-18X1EW1AD
/ / / /
Capacity range Hp 26 28 30 32
Capacity Cooling kW 73.5 80 85 90.4
heating kW 82.5 90 95 101.5
Power supply Ph/V/Hz 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60
Rated power input kW 18.85 20.51 22.16 23.88
Cooling Max power input kW 31.64 33.81 39.59 39.00
Rated current A 31.12 33.88 36.60 39.43
Electrical parameters Max current A 53.5 56.8 65.2 64.55
Rated power input kW 19.44 21.43 22.76 24.66
Heating Max power input kW 29.28 31.20 32.80 38.28
Rated current А 32.10 35.39 37.59 40.73
Max current А 47.3 50.4 53.08 63
EER 3.90 3.90 3.84 3.79
COP 4.24 4.20 4.17 4.12
SEER 6.63 6.48 6.21 6.29
SCOP 4.84 4.73 4.41 4.46
Air flow m³/h 30000/26400 30000/26400 30600/27600 31200/28200
Performance Sound pressure level dB(A) 62 62.5 63 64
Sound power level dB(A) 79 80 80 81
External dimensions (W/D/H) mm 1350×720×1690+
1350×720×1690
(1350×720×1690)*2 1350×720×1690+
1350×720×1690
1350×720×1690+
1350×720×2048
Shipping dimensions (W/D/H) mm 1450×826×1885+
1450×826×1885
(1450×826×1885)*2 1450×826×1885+
1450×826×1885
1450×826×1885+
1450×826×2225
Net/Shipping weight kg 269/305+275/311 275/311+275/311 275/311+323/359 275/311+354/400
Compressor type DC INV. SCROLL
Compressor brand MITSUBISHІ ELECTRIC
Compressor quantity 1INV+1INV 1INV*2 1INV+2INV 1INV+2INV
Refrigerant type R410A
Refrigerant charge kg 19.7 10 10 10
Refrigerant liquid pipe mm 19.05 19.05 19.05 19.05
Installation Refrigerant gas pipe mm 31.8 31.8 31.8 31.8
Oil equalization pipe mm 9.52 9.52 9.52 9.52
Max.total pipe length m 1000 1000 1000 1000
Max. pipe length
(Equivalent/Actual)
m 190/165 190/165 190/165 190/165
Max drop between I.U.&O.U
(O.U up/down)1
m 90/110 90/110 90/110 90/110
Standard drop between I.U.&O.U2 m 50/40 50/40 50/40 50/40
Max drop between I.U3 m 30 30 30 30
Standard drop between I.U4 m 18 18 18 18
External static pressure Pa 82 82 82 82
Connection ratio Connectable indoor unit ratio % 50-160 50-160 50-160 50-160
Maximum number of indoor units 53 58 62 64
Working temp. Cooling(DB) °C (-5...50) (-5...50) (-5...50) (-5...50)
Heating(WB) °C (-23...21) (-23...21) (-23...21) (-23...21)
Specifications Units MOV6-34X1EW1AD MOV6-36X1EW1AD MOV6-38X1EW1AD MOV6-40X1EW1AD
MOV6-16X1EW1AD MOV6-16X1EW1AD MOV6-18X1EW1AD MOV6-20X1EW1AD
Combination model MOV6-18X1EW1AD MOV6-20X1EW1AD MOV6-20X1EW1AD MOV6-20X1EW1AD
/ / / /
Capacity range Hp 34 36 38 40
Capacity Cooling kW 95.4 101 106.4 112
heating kW 106.5 113 119.5 126
Power supply Ph/V/Hz 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60
Rated power input kW 25.53 27.46 29.18 31.11
Cooling Max power input kW 44.78 47.87 47.28 50.37
Rated current A 42.16 45.35 48.19 51.38
Electrical parameters Max current A 72.95 77.9 77.25 82.2
Rated power input kW 26.00 28.00 29.90 31.90
Heating Max power input kW 39.88 42.39 47.87 50.37
Rated current А 42.94 46.24 49.38 52.68
Max current А 65.68 69.88 79.8 84
EER 3.74 3.68 3.65 3.60
COP 4.10 4.04 4.00 3.95
SEER 6.07 6.01 6.08 6.00
SCOP 4.21 4.17 4.23 4.19
Air flow m³/h 31800/29400 31800/29400 32400/30000 32400/30000
Performance Sound pressure level (H) dB(A) 64.5 64.5 65 65
Sound power level (H) dB(A) 82 82 83 83
External dimensions (W/D/H) mm 1350×720×1690+
1350×720×2048
1350×720×1690+
1350×720×2048
1350×720×2048+
1350×720×2048
(1350×720×2048)*2
Shipping dimensions (W/D/H) mm 1450×826×1885+
1450×826×2225
1450×826×1885+
1450×826×2225
1450×826×2225+
1450×826×2225
(1450×826×2225)*2
Net/Shipping weight kg 323/359+354/400 323/359+354/400 354/400+354/400 354/400+354/400
Compressor type DC INV. SCROLL
Compressor brand MITSUBISHІ ELECTRIC
Compressor quantity 2INV+2INV 2INV+2INV 2INV+2INV 2INV*2
Refrigerant type R410A
Refrigerant charge kg 20 20 20 20
Refrigerant liquid pipe mm 19.05 19.05 19.05 19.05
Installation Refrigerant gas pipe mm 38.1 38.1 38.1 38.1
Oil equalization pipe mm 9.52 9.52 9.52 9.52
Max.total pipe length m 1000 1000 1000 1000
Max. pipe length
(Equivalent/Actual)
m 190/165 190/165 190/165 190/165
Max drop between I.U.&O.U
(O.U up/down)1
m 90/110 90/110 90/110 90/110
Standard drop between I.U.&O.U2 m 50/40 50/40 50/40 50/40
Max drop between I.U3 m 30 30 30 30
Standard drop between I.U4 m 18 18 18 18
External static pressure Pa 82 82 82 82
Connection ratio Connectable indoor unit ratio % 50-160 50-160 50-160 50-160
Maximum number of indoor units 37 41 45 49
Working temp. Cooling(DB) °C (-5...50) (-5...50) (-5...50) (-5...50)
Heating(WB) °C (-23...21) (-23...21) (-23...21) (-23...21)
Specifications Units MOV6-42X1EW1AD MOV6-44X1EW1AD MOV6-46X1EW1AD MOV6-48X1EW1AD
MOV6-20X1EW1AD MOV6-20X1EW1AD MOV6-22X1EW1AD MOV6-24X1EW1AD
Combination model MOV6-22X1EW1AD MOV6-24X1EW1AD MOV6-24X1EW1AD MOV6-24X1EW1AD
/ / / /
Capacity range Hp 42 44 46 48
Capacity Cooling kW 117.5 124 129.5 136
heating kW 132 136 142 146
Power supply Ph/V/Hz 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60
Rated power input kW 33.13 35.27 37.28 39.42
Cooling Max power input kW 55.75 62.66 68.03 74.94
Rated current A 54.71 58.24 61.57 65.10
Electrical parameters Max current A 90.75 101.55 110.1 120.9
Rated power input kW 34.11 35.42 37.62 38.93
Heating Max power input kW 52.91 53.81 56.34 57.24
Rated current А 56.33 58.49 62.14 64.30
Max current А 88.05 89.4 93.45 94.8
EER 3.55 3.52 3.47 3.45
COP 3.87 3.84 3.77 3.75
SEER 5.96 5.84 5.80 5.69
SCOP 4.08 4.01 3.93 3.87
Air flow m³/h 32400/30000 32400/30000 32400/30000 32400/30000
Performance Sound pressure level dB(A) 65 65.5 65.5 66
Sound power level dB(A) 83 83 83 84
External dimensions (W/D/H) mm 1350×720×2048+
1350×720×2048
1350×720×2048+
1350×720×2048
1350×720×2048+
1350×720×2048
(1350×720×2048)*2
Shipping dimensions (W/D/H) mm 1450×826×2225+
1450×826×2225
1450×826×2225+
1450×826×2225
1450×826×2225+
1450×826×2225
(1450×826×2225)*2
Net/Shipping weight kg 354/400+380/426 354/400+380/426 380/426+380/426 380/426+380/426
Compressor type DC INV. SCROLL
Compressor brand MITSUBISHІ ELECTRIC
Compressor quantity 2INV+2INV 2INV+2INV 2INV+2INV 2INV*2
Refrigerant type R410A
Refrigerant charge kg 20 20 20 20
Refrigerant liquid pipe mm 19.05 19.05 19.05 19.05
Installation Refrigerant gas pipe mm 38.1 38.1 38.1 38.1
Oil equalization pipe mm 9.52 9.52 9.52 9.52
Max.total pipe length m 1000 1000 1000 1000
Max. pipe length
(Equivalent/Actual)
m 190/165 190/165 190/165 190/165
Max drop between I.U.&O.U
(O.U up/down)1
m 90/110 90/110 90/110 90/110
Standard drop between I.U.&O.U2 m 50/40 50/40 50/40 50/40
Max drop between I.U3 m 30 30 30 30
Standard drop between I.U4 m 18 18 18 18
External static pressure Pa 82 82 82 82
Connection ratio Connectable indoor unit ratio % 50-160 50-160 50-160 50-160
Maximum number of indoor units 64 64 64 64
Working temp. Cooling(DB) °C (-5...50) (-5...50) (-5...50) (-5...50)
Heating(WB) °C (-23...21) (-23...21) (-23...21) (-23...21)

Combination Module: 50-72HP
(3 modules)

T1 3PH/380~400V/50(60)Hz

Specifications Units MOV6-50X1EW1AD MOV6-52X1EW1AD MOV6-54X1EW1AD MOV6-56X1EW1AD
MOV6-14X1EW1AD MOV6-16X1EW1AD MOV6-16X1EW1AD MOV6-16X1EW1AD
Combination model MOV6-18X1EW1AD MOV6-16X1EW1AD MOV6-18X1EW1AD MOV6-20X1EW1AD
MOV6-18X1EW1AD MOV6-20X1EW1AD MOV6-20X1EW1AD MOV6-20X1EW1AD
Capacity range Hp 50 52 54 56
Capacity Cooling kW 140.8 146 151.4 157
heating kW 158 163 169.5 176
Power supply Ph/V/Hz 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60
Rated power input kW 37.50 39.37 41.08 43.02
Cooling Max power input kW 61.10 70.55 69.96 73.05
Rated current A 61.93 65.01 67.85 71.04
Electrical parameters Max current A 100.7 114.7 114.05 119
Rated power input kW 38.62 40.05 41.95 43.95
Heating Max power input kW 60.96 59.59 65.07 67.57
Rated current А 63.77 66.14 69.28 72.58
Max current А 100.8 97.76 107.68 111.88
EER 3.75 3.71 3.69 3.65
COP 4.09 4.07 4.04 4.00
SEER 6.36 6.12 6.05 6.01
SCOP 4.39 4.17 4.20 4.18
Air flow m³/h 47400/43800 47400/43800 48000/44400 48000/44400
Performance Sound pressure level dB(A) 66 66 66.5 66.5
Sound power level dB(A) 84 84 85 85
External dimensions (W/D/H) mm 1350×720×1690+
(1350×720×2048)*2
(1350×720×1690)*2+
1350×720×2048
1350×720×1690+1350×720×
2048+1350×720×2048
1350×720×1690+
(1350×720×2048)*2
Shipping dimensions (W/D/H) mm 1450×826×1885+
(1450×826×2225)*2
1450×826×1885)*2+
1450×826×2225
1450×826×1885+1450×826×
2225+1450×826×2225
1450×826×1885+
(1450×826×2225)*2
Net/Shipping weight kg 275/311+354/400+354/400 323/359+354/400+354/400 323/359+354/400+354/400 323/359+354/400+354/400
Compressor type DC INV. SCROLL
Compressor brand MITSUBISHІ ELECTRIC
Compressor quantity 1INV+2INV*2 2INV*2+2INV 2INV+2INV+2INV 2INV+2INV*2
Refrigerant type R410A
Refrigerant charge kg 30 30 30 30
Refrigerant liquid pipe mm 19.05 19.05 19.05 19.05
Installation Refrigerant gas pipe mm 38.1 38.1 38.1 41.3
Oil equalization pipe mm 9.52 9.52 9.52 9.52
Max.total pipe length m 1000 1000 1000 1000
Max. pipe length
(Equivalent/Actual)
m 190/165 190/165 190/165 190/165
Max drop between I.U.&O.U
(O.U up/down)1
m 90/110 90/110 90/110 90/110
Standard drop between I.U.&O.U2 m 50/40 50/40 50/40 50/40
Max drop between I.U3 m 30 30 30 30
Standard drop between I.U4 m 18 18 18 18
External static pressure Pa 82 82 82 82
Connection ratio Connectable indoor unit ratio % 50-160 50-160 50-160 50-160
Maximum number of indoor units 64 64 64 64
Working temp. Cooling(DB) °C (-5...50) (-5...50) (-5..50) (-5...50)
Heating(WB) °C (-23...21) (-23...21) (-23...21) (-23..21)
Specifications Units MOV6-58X1EW1AD MOV6-60X1EW1AD MOV6-62X1EW1AD MOV6-64X1EW1AD
MOV6-18X1EW1AD MOV6-20X1EW1AD MOV6-20X1EW1AD MOV6-20X1EW1AD
Combination model MOV6-20X1EW1AD MOV6-20X1EW1AD MOV6-20X1EW1AD MOV6-20X1EW1AD
MOV6-20X1EW1AD MOV6-20X1EW1AD MOV6-22X1EW1AD MOV6-24X1EW1AD
Capacity range Hp 58 60 62 64
Capacity Cooling kW 162.4 168 173.5 180
heating kW 182.5 189 195 199
Power supply Ph/V/Hz 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60
Rated power input kW 44.73 46.67 48.68 50.82
Cooling Max power input kW 72.47 75.56 80.93 87.84
Rated current A 73.88 77.07 80.40 83.93
Electrical parameters Max current A 118.35 123.3 131.85 142.65
Rated power input kW 45.85 47.85 50.06 51.37
Heating Max power input kW 73.05 75.56 78.09 78.99
Rated current А 75.72 79.02 82.67 84.83
Max current А 121.8 126 130.05 131.4
EER 3.63 3.60 3.56 3.54
COP 3.98 3.95 3.90 3.87
SEER 6.06 6.00 5.98 5.90
SCOP 4.27 4.19 4.12 4.07
Air flow m³/h 48600/45000 48600/45000 48600/45000 48600/45000
Performance Sound pressure level dB(A) 67 67 67 67
Sound power level dB(A) 85 85 85 85
External dimensions (W/D/H) mm 1350×720×2048+
(1350×720×2048)*2
(1350×720×2048)*3 (1350×720×2048)*2+
1350×720×2048
(1350×720×2048)*2+
1350×720×2048
Shipping dimensions (W/D/H) mm 1450×826×2225+
(1450×826×2225)*2
(1450×826×2225)*3 (1450×826×2225)*2+
(450×826×2225
(1450×826×2225)*2+
1450×826×2225
Net/Shipping weight kg 354/400+354/400+380/426 354/400+354/400+380/426 354/400+354/400+380/426 354/400+354/400+380/426
Compressor type DC INV. SCROLL
Compressor brand MITSUBISHІ ELECTRIC
Compressor quantity 2INV+2INV*2 2INV*3 2INV*2+2INV 2INV*2+2INV
Refrigerant type R410A
Refrigerant charge kg 30 30 30 30
Refrigerant liquid pipe mm 19.05 19.05 19.05 19.05
Installation Refrigerant gas pipe mm 41.3 41.3 41.3 41.3
Oil equalization pipe mm 9.52 9.52 9.52 9.52
Max.total pipe length m 1000 1000 1000 1000
Max. pipe length
(Equivalent/Actual)
m 190/165 190/165 190/165 190/165
Max drop between I.U.&O.U
(O.U up/down)1
m 90/110 90/110 90/110 90/110
Standard drop between I.U.&O.U2 m 50/40 50/40 50/40 50/40
Max drop between I.U3 m 30 30 30 30
Standard drop between I.U4 m 18 18 18 18
External static pressure Pa 82 82 82 82
Connection ratio Connectable indoor unit ratio % 50-160 50-160 50-160 50-160
Maximum number of indoor units 64 64 64 64
Working temp. Cooling(DB) °C (-5...50) (-5...50) (-5...50) (-5...50)
Heating(WB) °C (-23...21) (-23...21) (-23...21) (-23...21)
Specifications Units MOV6-66X1EW1AD MOV6-68X1EW1AD MOV6-70X1EW1AD MOV6-72X1EW1AD
MOV6-20X1EW1AD MOV6-20X1EW1AD MOV6-22X1EW1AD MOV6-24X1EW1AD
Combination model MOV6-22X1EW1AD MOV6-24X1EW1AD MOV6-24X1EW1AD MOV6-24X1EW1AD
MOV6-24X1EW1AD MOV6-24X1EW1AD MOV6-24X1EW1AD MOV6-24X1EW1AD
Capacity range Hp 66 68 70 72
Capacity Cooling kW 185.5 192 197.5 204
heating kW 205 209 215 219
Power supply Ph/V/Hz 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60 3/380-400/50/60
Rated power input kW 52.84 54.98 56.99 59.13
Cooling Max power input kW 93.22 100.13 105.50 112.41
Rated current A 87.26 90.79 94.12 97.65
Electrical parameters Max current A 151.2 162 170.55 181.35
Rated power input kW 53.57 54.88 57.09 58.40
Heating Max power input kW 81.53 82.43 84.96 85.86
Rated current А 88.48 90.64 94.29 96.45
Max current А 135.45 136.8 140.85 142.2
EER 3.51 3.49 3.47 3.45
COP 3.83 3.81 3.77 3.75
SEER 5.86 5.79 5.77 5.69
SCOP 4.00 3.96 3.91 3.87
Air flow m³/h 48600/45000 48600/45000 48600/45000 48600/45000
Performance Sound pressure level dB(A) 67 67.5 67.5 68
Sound power level dB(A) 86 86 86 86
External dimensions (W/D/H) mm 1350×720×2048+1350×720×
2048+1350×720×2048
1350×720×2048+
(1350×720×2048)*2
1350×720×2048+
(1350×720×2048)*2
(1350×720×2048)*3
Shipping dimensions (W/D/H) mm 1450×826×2225+1450×
826×2225+1450×826×2225
1450×826×2225+
(1450×826×2225)*2
1450×826×2225+
(1450×826×2225)*2
(1450×826×2225)*3
Net/Shipping weight kg 354/400+380/426+380/426 354/400+380/426+380/426 380/426+380/426+380/426 380/426+380/426+380/426
Compressor type DC INV. SCROLL
Compressor brand MITSUBISHІ ELECTRIC
Compressor quantity 2INV+2INV+2INV 2INV+2INV*2 2INV+2INV*2 2INV*3
Refrigerant type R410A
Refrigerant charge kg 30 30 30 30
Refrigerant liquid pipe mm 22.22 22.22 22.22 22.22
Installation Refrigerant gas pipe mm 44.5 44.5 44.5 44.5
Oil equalization pipe mm 9.52 9.52 9.52 9.52
Max.total pipe length m 1000 1000 1000 1000
Max. pipe length
(Equivalent/Actual)
m 190/165 190/165 190/165 190/165
Max drop between I.U.&O.U
(O.U up/down)1
m 90/110 90/110 90/110 90/110
Standard drop between I.U.&O.U2 m 50/40 50/40 50/40 50/40
Max drop between I.U3 m 30 30 30 30
Standard drop between I.U4 m 18 18 18 18
External static pressure Pa 82 82 82 82
Connection ratio Connectable indoor unit ratio % 50-160 50-160 50-160 50-160
Maximum number of indoor units 64 64 64 64
Working temp. Cooling(DB) °C (-5...50) (-5...50) (-5...50) (-5...50)
Heating(WB) °C (-23...21) (-23...21) (-23...21) (-23...21)

1. Power tested according to EN14511.
2. Capacities are for the following conditions:
Cooling: indoor temperature 27 °C DB/ 19 °C WB, outdoor temp. 35 °C DB, 7.5 m long connecting piping, 0 height difference.

Heating: indoor temperature 20 °C DB outdoor temp. 7 °C/6 °C WB, length of connecting pipelines – 7.5 m,height difference – 0
3. In accordance with our policy of innovation, some specifications are subject to change without notice.

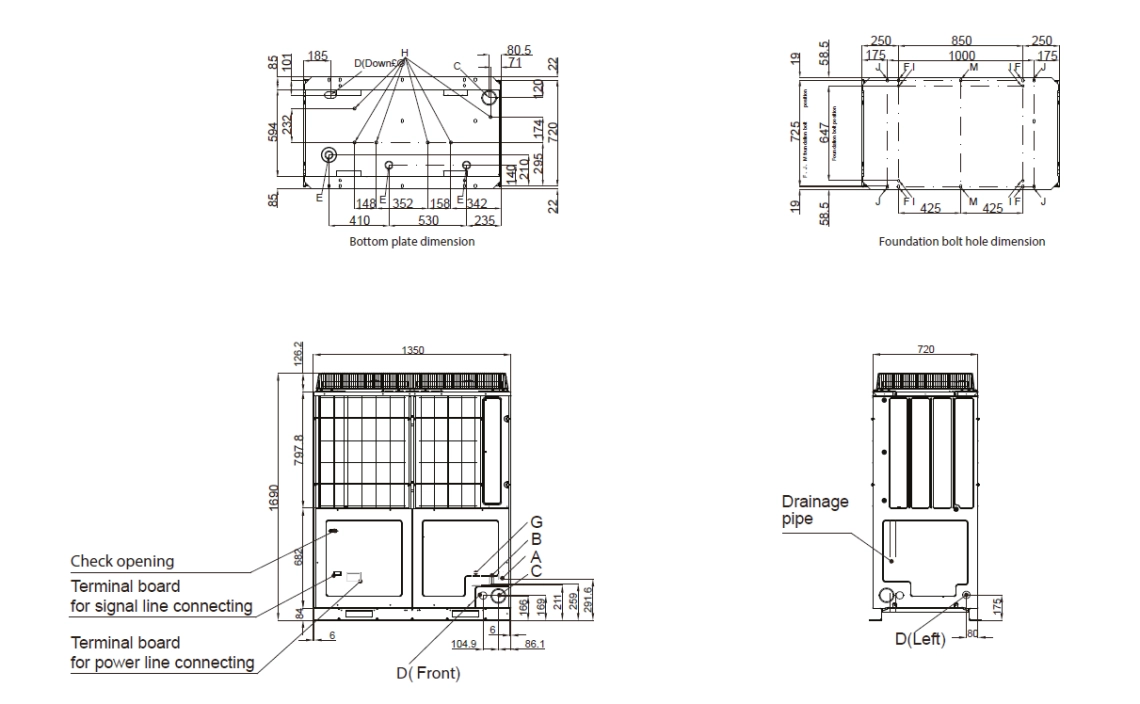

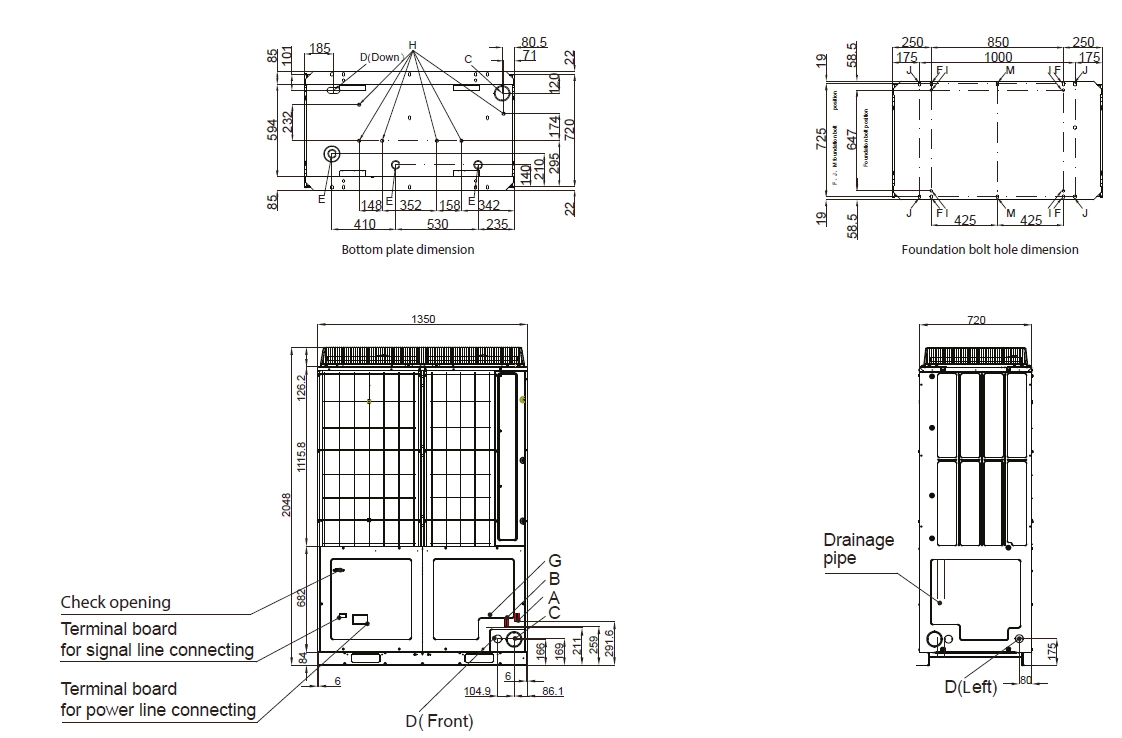

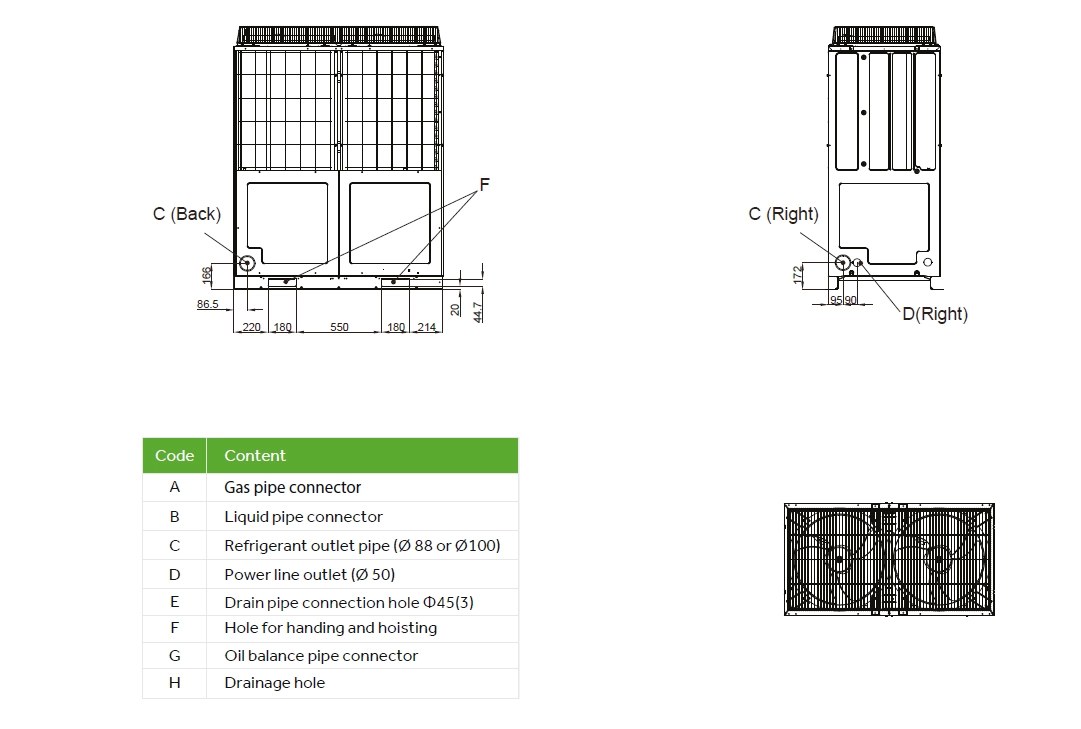

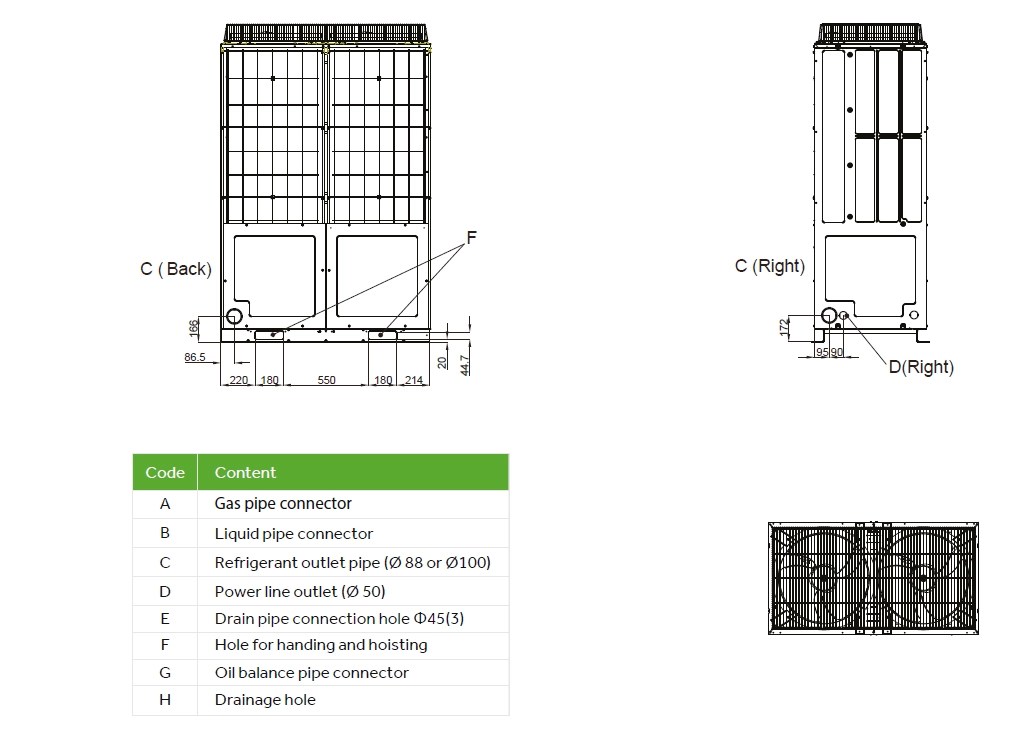

Dimensions

MOV6-8X1EW2AD MOV6-10X1EW2AD MOV6-12X1EW1AD MOV6-14X1EW1AD MOV6-16X1EW1AD


Diagram showing functions and components of the MRF 6 system.

Dimensions


Dimensions of the MRF 6 showcasing advanced energy-efficient technology.

Dimensions

MOV6-18X1EW1AD MOV6-20X1EW1AD MOV6-22X1EW1AD MOV6-24X1EW1AD


Diagram showing improvements in compressor technologies for MRF 6.

Dimensions

Diagram showing dimensions of the MRF 6 advanced compressor system.

Note: when install air duct the air duct inside is rectangle: length × width ≥ 1300mm × 660mm
