Designer floor-standing fan coil units Silver Glass series

Home / Catalog / Air Conditioning / Fan Coil Units (FCU) / Floor-standing Fan Coil Units / Designer floor-standing fan coil units Silver Glass series
The new Silver Glass series of artist-built fan coil units is designed for exceptional interiors. The models have been designed in a modern style to blend in any interior or be as discreet as possible
Cooling capacity: 0.45 ... 3.73 kW
Heating capacity: 0.61 ... 4.71 kW

Want to buy or have questions?
Designer floor-standing fan coil units Silver Glass series
Mycond
Floor-standing Fan Coil Units

The fan coil unit features an ultra-thin design. For comparison, its casing along with the glass is only 122 mm thick, allowing for more space during installation. Additionally, its simple and tidy appearance will seamlessly blend into your room's style.

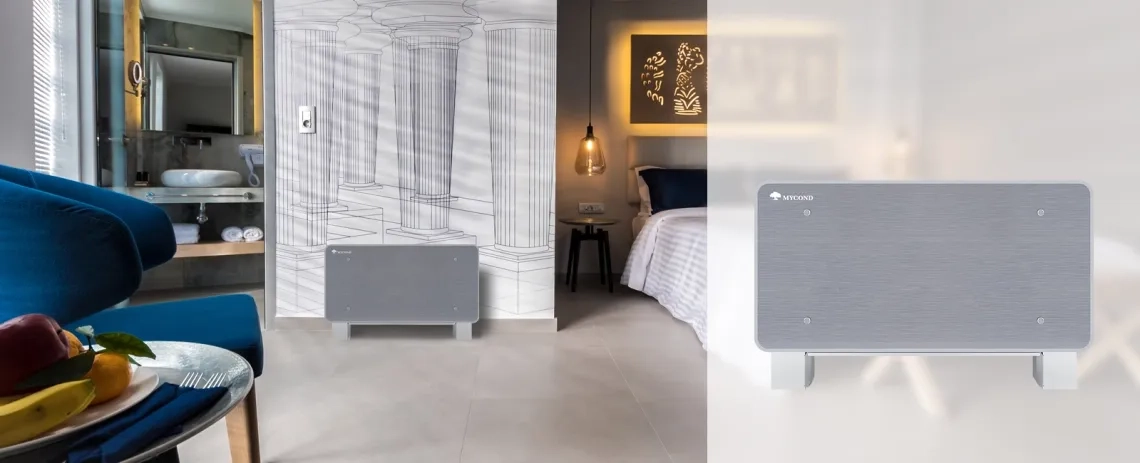

MyCond Silver Glass for modern interiors

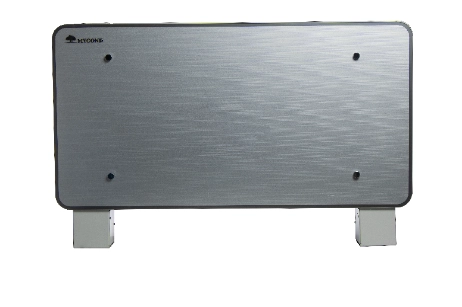

MyCond Silver Glass appearance

The fan coil units will effectively enhance a heating system that uses a heat pump. The equipment does not require high water temperatures to heat the home, thereby reducing your expenses.





Key advantages:

  • Glass front panel
  • Ultra-thin body
  • The unit frame is constructed from 0.8-1 mm gauge metal sheet
  • Low noise level
  • Integrated housing for the thermostat
  • DC motor
  • Class G1 air filters designed for easy removal for hassle-free cleaning and maintenance
  • The heat exchanger coil consists of copper tubes and brass manifolds: the tubes are fitted with corrugated aluminum fins
  • Equipped with a removable drain pan
  • Aluminum grille with magnetic fastening
  • Optional: rear glass panel (open-space installation)
  • Thermostat (optional)

MyCond Silver Glass mobile application

*The Mycond Block fan coil thermostat is available.

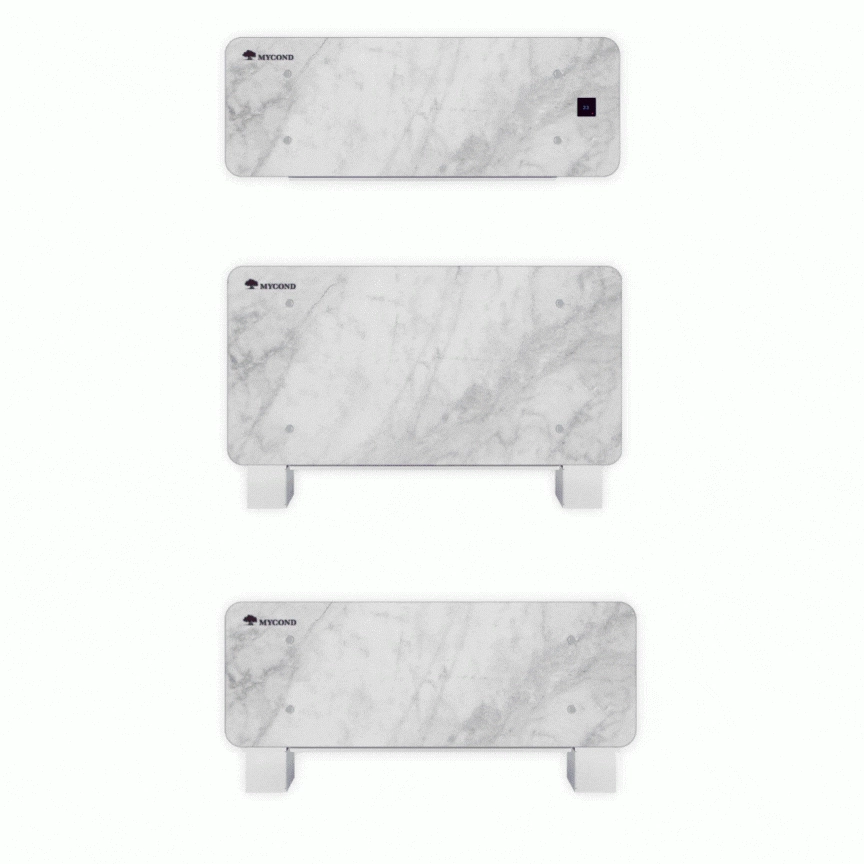

MyCond Silver Glass for modern climate control

Discover a new level of elegance with Mycond!

  • Modern design: elegant printed glass panels fit seamlessly into any interior, adding a touch of style and modernity.
  • You can select your own image or design for the panel, which we will customize to match your interior.



Modern floor-standing fan coil unit from the MyCond Silver Glass series.



Main components

External parts

  1. Left-side panel
  2. Right-side panel
  3. Fandeck
  4. Auxiliary drain
  5. Filter
  6. Front panel
  7. Aluminum grille
  8. Electric box
  9. Control panel (option)



MyCond Silver Glass Stylish ultra-thin floor-standing fan coil unit.



MyCond Silver Glass Ultra-thin fan coil unit with modern features.

Internal parts

Vertical units

  1. Inner side panel
  2. Main heat-exchanger
  3. Condensate tray
  4. Fandeck
  5. Aluminum grille
  6. Inner front and rear panels
  7. Electric box



Internal parts

Horizontal unit

  1. Inner side panel
  2. Main heat-exchanger
  3. Condensate tray
  4. Fandeck
  5. Aluminum grille
  6. Inner front and rear panels
  7. Electric box

Internal components of the MyCond Silver Glass series floor-standing fan coil.

Technical data

2 pipe system

   Specifications Units MC-SG-200T2 MC-SG-400T2 MC-SG-600T2 MC-SG-800T2
Air flow rate   Supermax 250 390 510 620
    Max (*) 180 315 450 540
  m3/h Med (*) 120 230 350 450
    Min (*) 80 155 240 310
    Static 10 18 25 32
Total cooling capacity   Supermax 1.19 2.12 2.90 3.73
    Max 0.88 1.81 2.70 3.38
  kW Med 0.79 1.45 2.20 2.75
    Min 0.45 0.98 1.70 2.13
Sensible capacity   Supermax 0.87 1.56 2.16 2.97
    Max 0.69 1.35 2.00 2.70
  kW Med 0.60 1.10 1.68 2.30
    Min 0.30 0.70 1.25 1.70
Heating capacity   Supermax 1.55 2.71 3.71 4.71
    Max 1.10 2.40 3.20 4.23
  kW Med 0.90 1.50 2.40 3.40
    Min 0.61 1.16 1.75 2.41
  V/H/Ph 230 V – 50 Hz - 1Ph
Motor input   Supermax 20 22 24 27
    Max 12 13 14 17
  W Med 5 6 7 10
    Min 3 4 5 8
Water flow rate   Supermax 204 364 498 639
    Max 151 311 463 580
  l/h Med 136 249 377 472
    Min 77 168 292 365
Pressure drop   Supermax 15.1 10.2 20.9 19.9
    Max 13.1 8.2 19.0 18.7
  kPa Med 7.2 6.0 16.5 13.2
    Min 4.1 4.1 13.0 10.0
Coil connection       1/2” GF 1/2” GF 1/2” GF 1/2” GF
Water content L   0.33 0.59 0.85 1.11
Sound power   Supermax 55.0 56.0 57.1 58.3
    Max 51.3 52.2 52.4 53.3
  dB(A) Med 44.6 45.5 46.6 48.6
    Min 37.5 38.6 40.5 38.7
Sound pressure   Supermax 38.0 39.0 40.1 41.3
    Max 34.3 35.2 35.4 36.3
  dB(A) Med 27.6 28.5 29.6 31.6
    Min 20.5 21.6 23.5 21.7


COOLING MODE
Room:27° C – 47% R.H. Water temp. (in/out):7/12°C
HEATING MODE
Room:20° C. Water temp. in:50.
 (*) Declared values are relative to standard settings at 1500, 900 and 600 RPM. It is always possible to change the air flow by adjusting the dip switch setting in the PCB.

Dimensions

vertical mounting


Sleek floor-standing fan coil unit from the MyCond Silver Glass series.

  Specifications Units MC-SG-200T2 MC-SG-400T2 MC-SG-600T2  MC-SG-800T2
A mm 681 873 1065 1257
Net weight kg 14 18 21 25
Gross weight kg 18 21 25 29



Dimensions

Horizontal mounting


Dimensions of MyCond Silver Glass series floor-standing fan coil unit.

Specifications Units MC-SG-200T2 MC-SG-400T2 MC-SG-600T2 MC-SG-800T2
A mm 681 873 1065 1257
Net weight kg 14 18 21 25
Gross weight kg 18 21 25 29
