4-way cassette fan coils series MCFK-A2/4

Ideal for spaces where aesthetics and quietness are of paramount importance. Smooth and even air distribution creates a natural microclimate. A technology that works for you, quietly and perfectly.

Cooling capacity: 2 ... 17.6 kW

Heating capacity: 2.8 ... 25.5 kW

Want to buy or have questions?

4-way cassette fan coils series MCFK-A2/4

Mycond

Cassette Fan Coil Units

Thanks to a diverse range of cooling and heating capacities, these fan coils can be utilized in spaces of any size, and the chic, sophisticated design of the decorative panel will complement any interior.

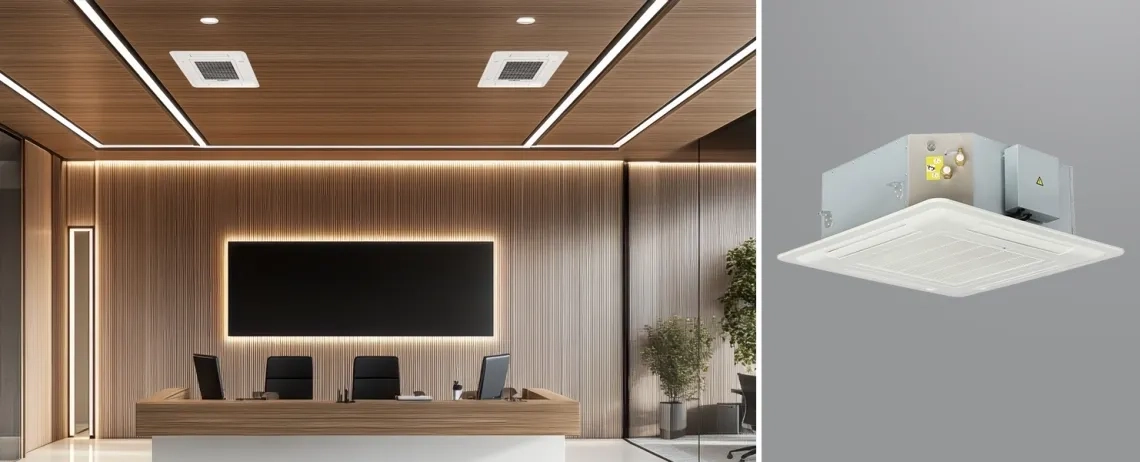

MyCond MCFK-A2/4 for commercial premises

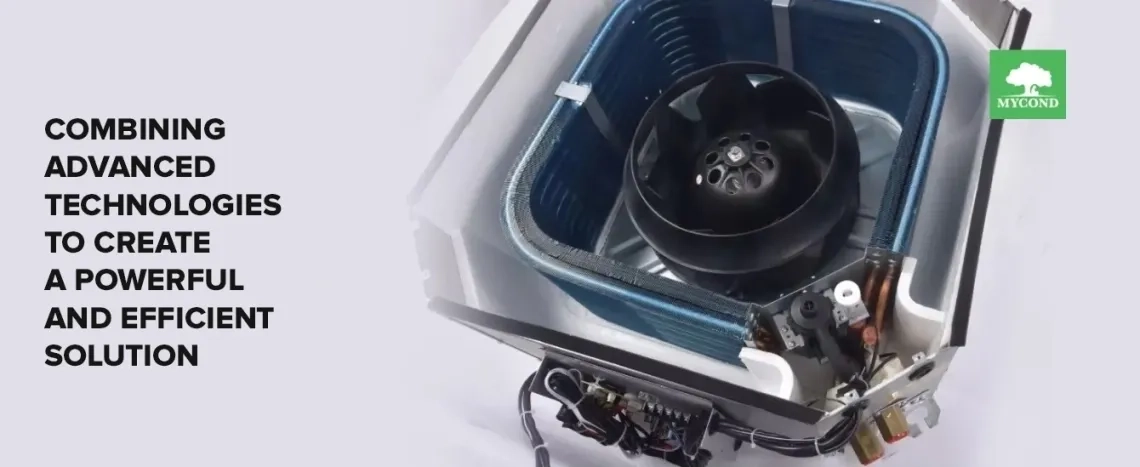

MyCond MCFK-A2/4 modern design and efficiency

MyCond MCFK-A2/4 compact design for the office

Features and benefits:

The casing is constructed from galvanized steel and features molded polystyrene air ducts that ensure efficient airflow and are sufficiently thick for dependable heat and noise insulation.
The panel boasts a contemporary design, is made from durable ABS plastic, and comes with a removable, washable air filter along with an automatic airflow oscillation feature.
The wheel is produced using a single-cycle molding process, with no welded joints between the fan blades and the end/conical plate, ensuring perfect balance. An anti-vibration pad on the hub minimizes noise and vibration from the wheels and motor. Each wheel is precisely balanced to a tolerance of less than 0.5 mm/s.
The heat exchanger consists of copper tubes and aluminum plates with a protective blue coating, ensuring high heat transfer efficiency. Each heat exchanger undergoes leak testing at 16 bar (1.6 MPa).
The pallet is made from high-density foamed polystyrene using thermoforming technology, features a protective PVC coating, and is equipped with a drainage pump and a safety float valve.

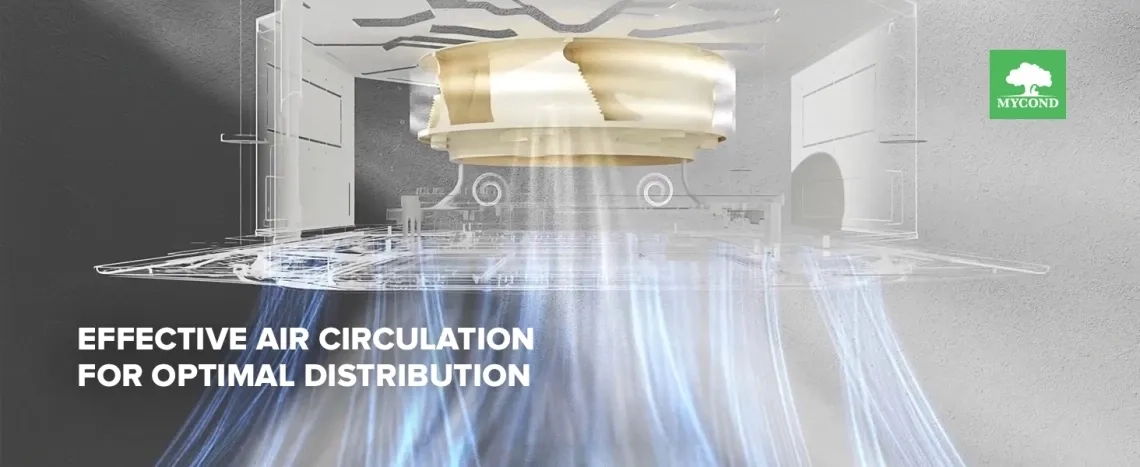

MyCond MCFK-A2/4 efficient air circulation scheme

Infrared remote control*

Basic fan coil control
Wall-mounted controller with Wi-Fi (MCKF-WK-B)**
Advanced fan coil control

^*in^{the scope of delivery}
^**purchased^separately

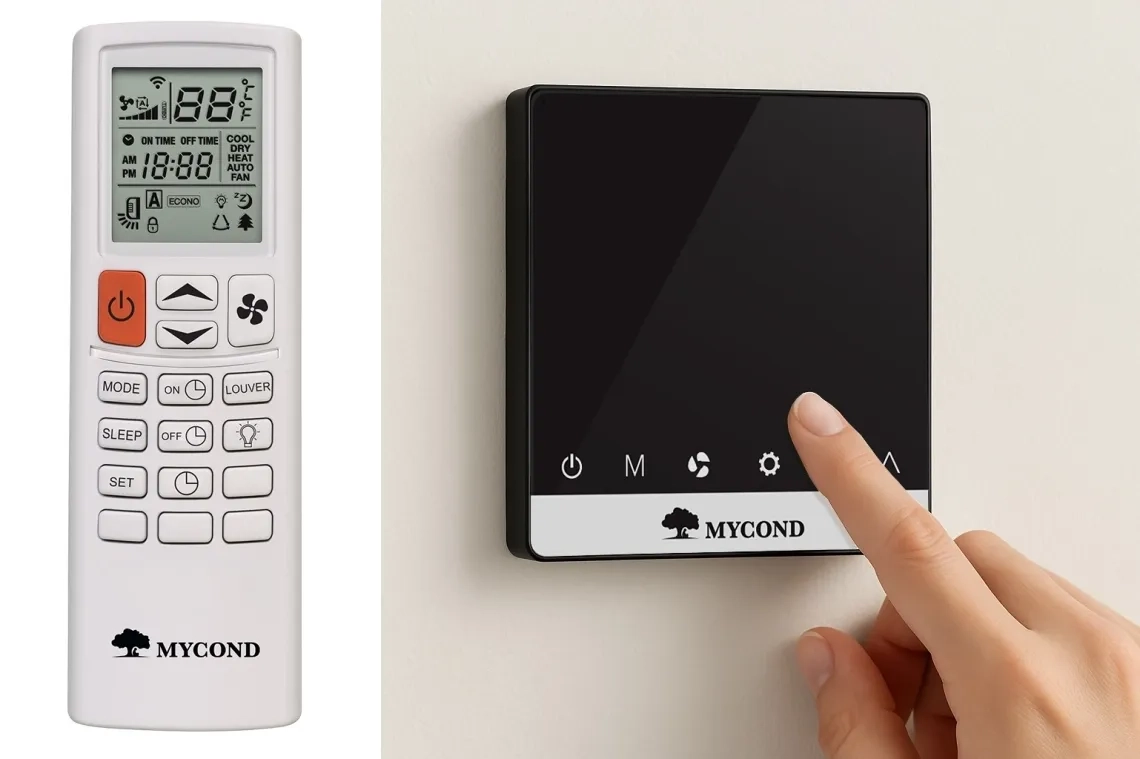

MyCond MCFK-A2/4 remote control and thermostat

MyCond MCFK-A2/4 for comfort in office areas

2-pipe models

Technical specifications	Units	MCFK-020-A2	MCFK-027-A2	MCFK-037-A2	MCFK-042-A2	MCFK-045-A2	MCFK-056-A2
Air flow H/M/L	m³/hour	340/280/180	510/390/260	680/520/350	800/580/390	850/639/430	1020/790/520
Total cooling capacity H/M/L	W	1800/1485/954	2700/2061/1377	3600/2754/1854	4200/3800/2800	4500/3384/2277	5400/4185/2754
Sensitive cooling capacity H/M/L	W	1350/1114/716	2025/1546/1033	2700/2066/1391	2900/2600/1900	3375/2538/1708	4050/3139/2066
Total thermal power	W	2700/2228/1431	4050/3092/2066	5400/4131/2781	6300/5500/4500	6750/5076/3416	8100/6278/4131
Power supply	V/F/Hz	220/1/50
Fan and motor
Fan type		Centrifugal fan wheel
Fan size		⌀315				⌀380
Engine type		AC motor
Input power	W	39	52	62	68	76	96
IP protection rating in the motor		IP20	IP20	IP20	IP20	IP20	IP20
Motor insulation class		B	B	B	B	B	B
Coil details
Tube material		Copper pipe
Outer diameter of the tube	mm	Standard - 9.52
Tube thickness	mm	0.3	0.3	0.3	0.3	0.3	0.3
Area	m²	4.65	4.65	9.3	10.3	13.4	13.4
Coil size (H*W)	mm	200*21.65		200*43.3	210×43.3	225*43.3
Rib material		0.105 mm hydrophilic crumbs
Rib type		Louver-type ribs
Distance between ribs	mm	2	2	2	2	2	2
The "Ryady-2" pipeline system		2	2	2	2	2	2
Circulation		2 out of 2 at the exit				4 out of 4 at the exit
Maximum working pressure	MPa	1.6	1.6	1.6	1.6	1.6	1.6
Connection
ENTRY/EXIT	mm	3/4"	3/4"	3/4"	3/4"	3/4"	3/4"
Drain	mm	26	26	26	26	26	26
Device housing
Body material		Galvanised steel
Material thickness	mm	0.8	0.8	0.8	0.8	0.8	0.8
Drain tray		High-density expanded polystyrene
Drainage pump		Standard PSB-7 model with 700 mm head (1200 mm head optional)
Insulation material		XPE	XPE	XPE	XPE	XPE	XPE
Insulation thickness	mm	5	5	5	5	5	5
Filter
Type		Primary filter
Material		ABC+nylon
Thickness		12	12	12		14	14
Size	mm	350*333			12	430*407
For all sizes of block panels
Net size (HWD)	mm	68068030				83083030
Package size (HWD)	mm	72072075				86086075
Net/gross weight	kg	2.3/3.7				3.5/5.2
For all block-body dimensions

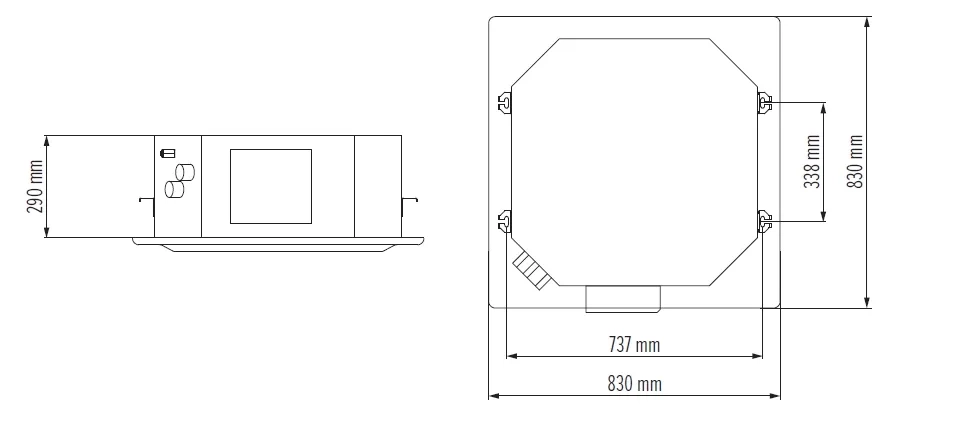

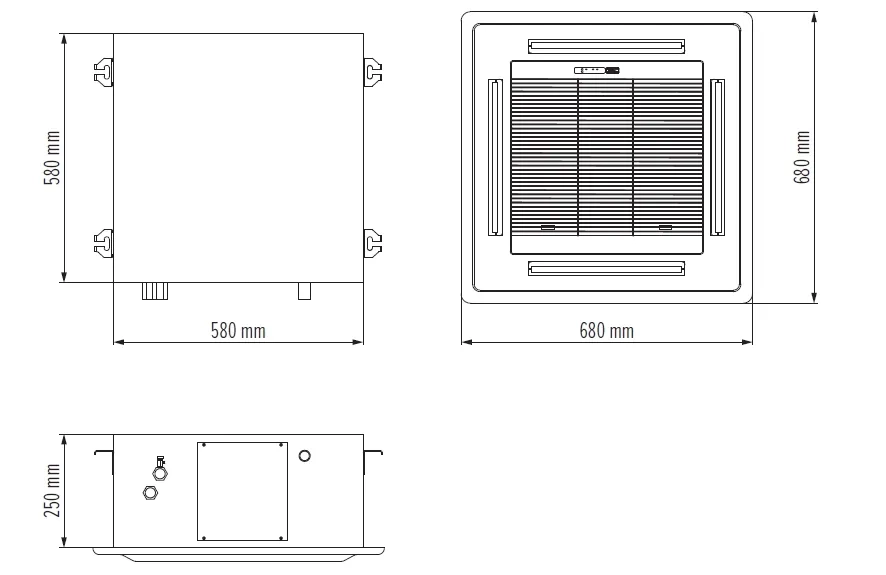

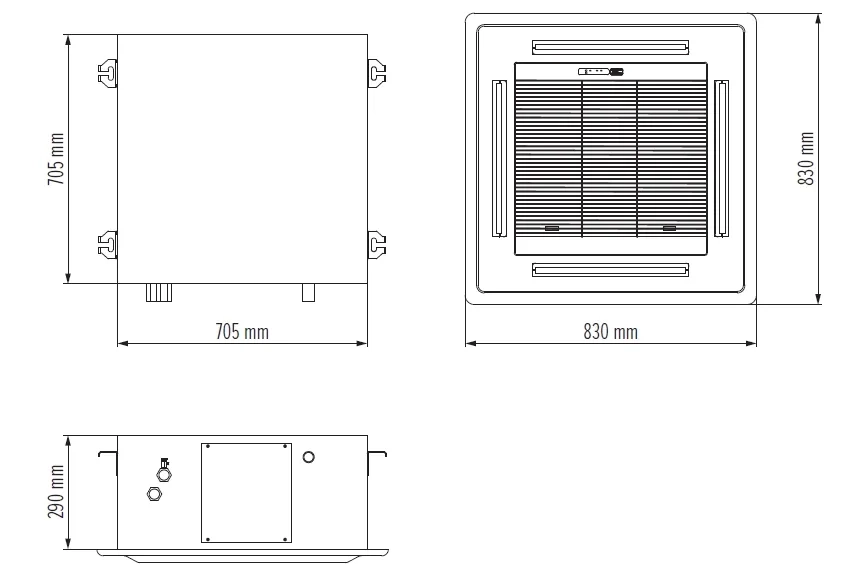

Net size (HWD)	mm	580580250				705705290
Package size (HWD)	mm	675675270				800800310
Net/gross weight	kg	17.7/19.3				21.5/23.8
Sound pressure level at a distance of 1 m H/M/L	dB	37/35/29	39/37/31	41/37/30	42/38/32	43/39/32	45/37/34
Unit weight	kg	20	20	20	20	25	25

Technical specifications	Units	MCFK-070-A2	MCFK-091-A2	MCFK-108-A2	MCFK-126-A2	MCFK-153-A2
Air flow H/M/L	m³/hour	1360/1030/690	1699/1290/860	2039/1499/1030	2379/1799/1199	2718/2098/1599
Total cooling capacity H/M/L	W	7200/5454/3654	9000/6831/4554	10800/7938/5454	12600/9531/6354	15300/11810/8469
Sensitive cooling capacity H/M/L	W	5400/4091/2741	6750/5124/3416	8100/5954/4091	9450/7149/4766	11475/8858/6352
Total thermal power	W	10800/8181/5481	13500/10247/6831	16200/11907/8181	18900/14297/9531	23700/18293/13939
Power supply	V/F/Hz	220/1/50
Fan and motor
Fan type		Centrifugal fan wheel
Fan size		⌀380	⌀476			⌀530
Engine type		AC motor
Input power	W	132	152	189	220	330
IP protection rating in the motor		IP20	IP20	IP20	IP20	IP20
Motor insulation class		B	B	B	B	B
Coil details
Tube material		Copper pipe
Outer diameter of the tube	mm	Standard - 9.52
Tube thickness	mm	0.3	0.3	0.3	0.3	0.3
Area	m²	13.4	19.7	19.7	19.7	27.1
Coil size (H*W)	mm	225*43.3	250*43.3
Rib material		0.105 mm hydrophilic crumbs
Rib type		Louver-type ribs
Distance between ribs	mm	2	2	2	2	2
The "Ryady-2" pipeline system		2	2	2	2	2
Circulation		4 out of 4 at the exit		5 out of 5 at the exit
Maximum working pressure	MPa	1.6	1.6	1.6	1.6	1.6
Connection
ENTRY/EXIT	mm	3/4"	3/4"	3/4"	3/4"	3/4"
Drain	mm	26	26	26	26	26
Device housing
Body material		Galvanised steel
Material thickness	mm	0.8	0.8	0.8	0.8	0.8
Drain tray		High-density expanded polystyrene
Drainage pump		Standard PSB-7 model with 700 mm head (1200 mm head optional)
Insulation material		XPE	XPE	XPE	XPE	XPE
Insulation thickness	мм	5	5	5	5	5
Filter
Type		Primary filter
Material		ABC+nylon
Thickness		14	14	14	14	14
Size	mm	430*407	556*540			644*638
For all sizes of block panels
Net size (HWD)	mm	83083030	98098030			1140114030
Package size (HWD)	mm	86086075	1010101075			1170117075
Net/gross weight	kg	3.45/5.2	5.2/7.4	5.2/7.4	5.2/7.4	7.8/10.7
For all block-body dimensions

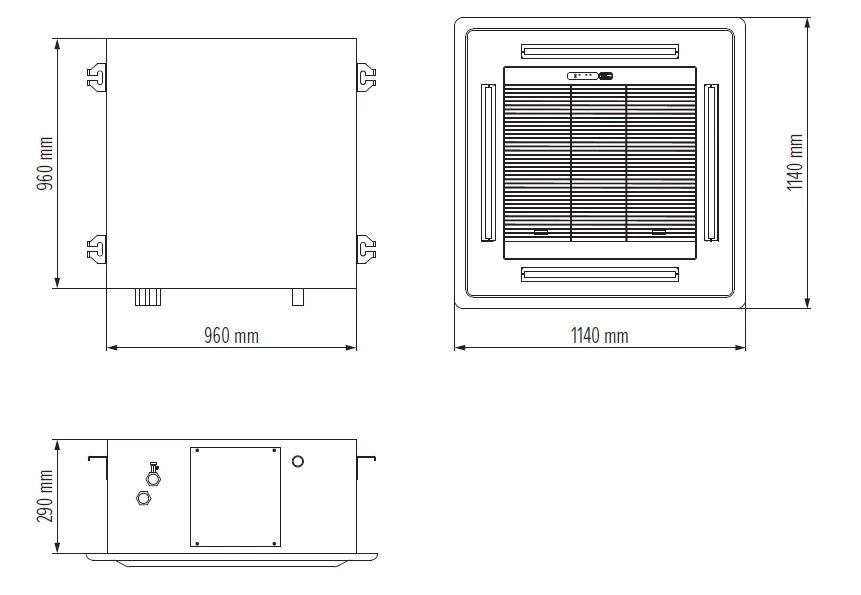

Net size (HWD)	mm	706706290	832832290			960960290
Package size (HWD)	mm	800800310	925925310			10541054320
Net/gross weight	kg	21.5/23.8	28.8./30.6	28.8./30.6	28.8./30.6	44.2/45.3
Sound pressure level at a distance of 1 m H/M/L	dB	45/38/37	47/39/36	50/45/37	52/46/39	57/52/48
Unit weight	kg	25	32	32	32	45.4

Nominal test conditions:
Cooling: inlet air temperature +27 °C ST/+19.5 °C MT, inlet water temperature +7 °C, outlet water temperature +12 °C.
Heating: inlet air temperature +21 °C, inlet water temperature +60 °C, same water flow rate as for cooling.
Sound pressure level measurements are taken in a soundproof room, with the control point located 1.5 m below the vertical axis of the unit.

4-pipe models

Technical specifications	Units of measurement	MCFK-026-A4	MCFK-028-A4	MCFK-031-A4	MCFK-036-A4	MCFK-048-A4	MCFK-060-A4	MCFK-070-A4	MCFK-084-A4	MCFK-103-A4	MCFK-115-A4
Air flow (H/M/L)	m³/hour	680/520/350	800/580/390	850/640/430	1020/790/520	1360/1030/690	1700/1290/860	2040/1500/1030	2380/1800/1200	2890/2100/1600	3400/2600/1900
Total cooling capacity (H/M/L)	kW	2.6/2.0/1.4	2.8/2.2/1.6	3.1/2.4/1.8	3.6/2.8/2.1	4.8/3.7/3.0	6.0/4.7/3.6	7.0/6.0/4.6	8.4/6.5/5.0	10.3/7.5/5.7	11.5/8.3/6.3
Total heat output (H/M/L)	kW	2.6/2.0/1.5	3.1/2.3/1.7	3.5/2.7/2.1	4.3/3.2/2.5	4.9/4.3/3.5	6.5/5.4/4.2	7.2/5.6/4.3	8.7/7.6/5.8	11.9/8.7/6.6	15.2/11.3/8.7
Engine type		Alternating current motor
Sound pressure level at a distance of 1 m	dB	41	42	43	45	46	47	50	52	57	65
Power supply V/F/Hz		230/1/50
Connections (input/output)		ZG3/4” / ZG3/4”
Connection (drain)	mm	26
Fan size		Ø315	Ø315	Ø380	Ø380	Ø380	Ø476	Ø476	Ø476	Ø530	Ø530
Engine input power	W	62	68	76	96	132	152	189	220	330	340
Net weight, block-body	kg	21	21	26	26	26	35	35	35	53	53
Net size, block body (HWD)	mm	580x580x250		705x705x290			832x832x290			980x980x290
Net size, panels (HWD)	mm	680x680x30		830x830x30			980x980x30			1140x1140x30
