Fan coil thermostat Mycond TRF-B2 white / black

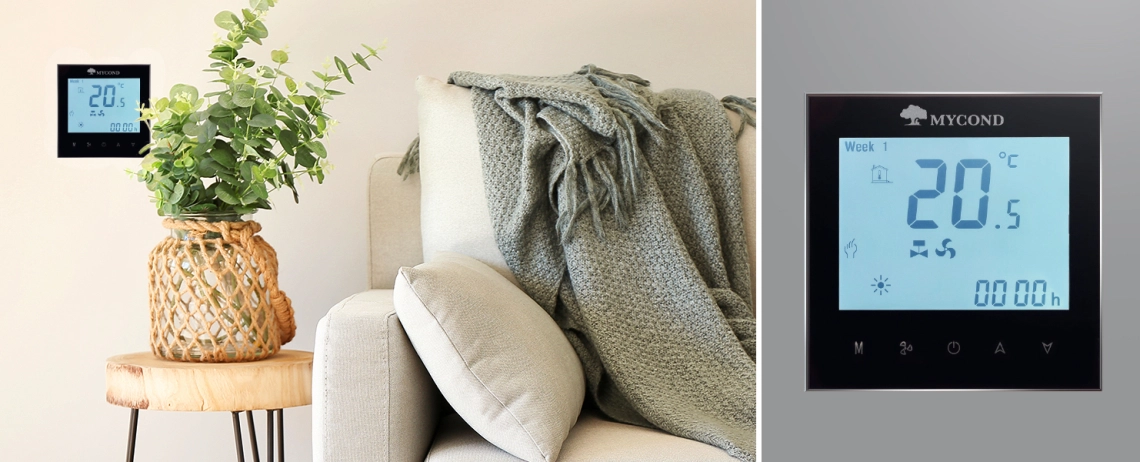

The TRF-B2 thermostat by Mycond has a discreet classic design which features a large screen with backlighting and large font, as well as touch buttons with smart backlighting. All of this makes the thermostat easy to operate and to create your own climate

Array

Fan coil thermostat Mycond TRF-B2 white / black

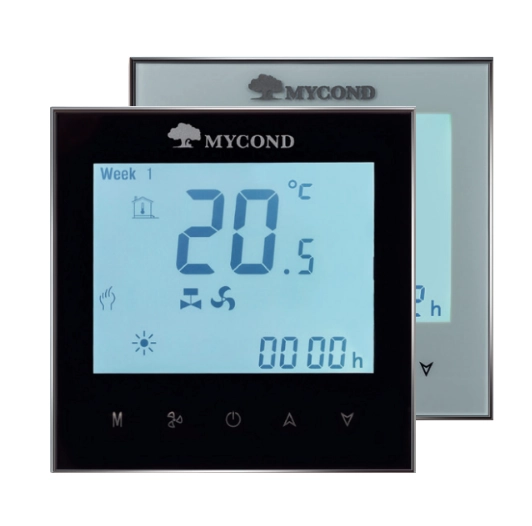

The digital thermostat with LCD display for fan coil control in white and black.

Diagram illustrating the multi-valve and pipe system of the Mycond TRF-B2 thermostat.

Advantages

Touch control
Large display with blue backlighting and large font
Temperature adjustment within +5 °C to +35 °C
Programmable mode
Lockable control buttons
Fan control (3 speeds + Auto)
Valve control*
3 work modes (ventilation, cooling or heating)

Additional modifications:

MODBUS for connection to a building management system or a smart home
Support of 2-pipe systems
Support of 4-pipe systems
Wi-Fi, wireless control by Mycond SmartApp on smartphone
0-10 V for fan and 24 V operating voltage
0-10 V for fan and 220 V operating voltage
0-10 V for valve control

* 1 or 2 valves for a 2- or 4-pipe system respectively

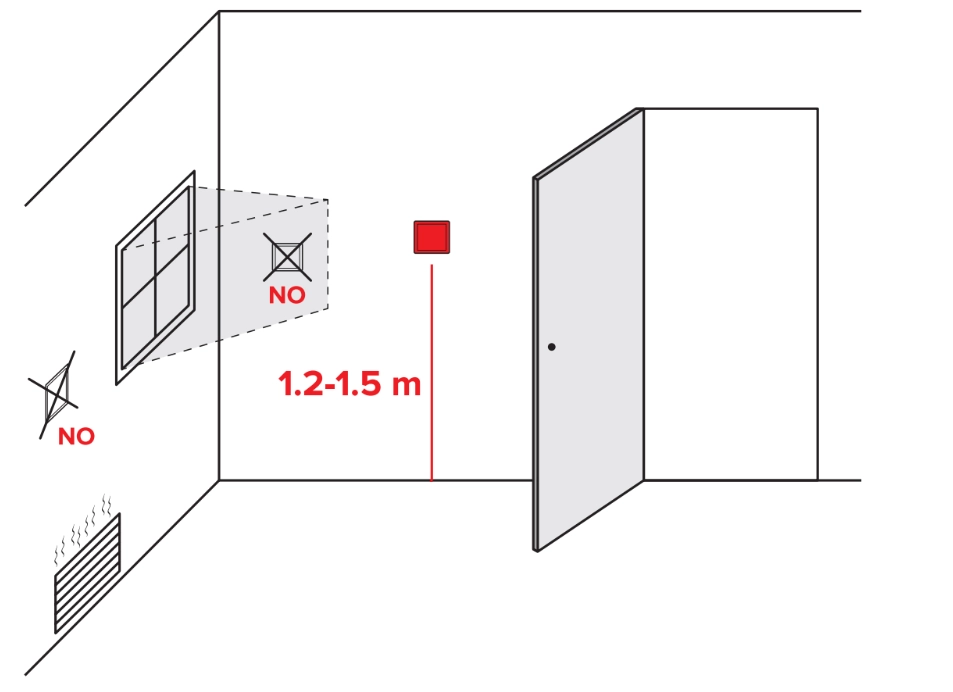

Installation tips

Install the thermostat at about 1.2-1.5 m above the floor in a well-ventilated
area with moderate ambient temperature.

Do not install in locations where the thermostat can be affected by:

Drafts or dead spots behind doors and in corners
Hot or cold air from ducts
Sunlight or radiant heat from appliances
Concealed pipes or chimneys
Unheated/uncooled areas such as an outside wall behind the thermostat

Close-up of Mycond TRF-B2 thermostat with installation instructions.
