Designer floor-standing fan coil units Silver Glass series

The new Silver Glass series of artist-built fan coil units is designed for exceptional interiors. The models have been designed in a modern style to blend in any interior or be as discreet as possible

Array 0.45 ... 3.73 kW

Array 0.61 ... 4.71 kW

Array

Designer floor-standing fan coil units Silver Glass series

The fan coil unit is ultra-thin in design. For comparison, its casing together with the glass is only 122 mm thick, saving more space for installation. In addition, its simple and neat appearance will easily fit into the style of your room.

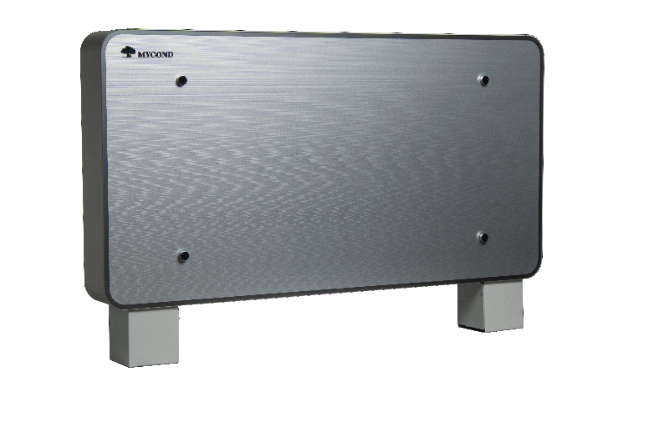

A modern floor-standing fan coil unit from the Silver Glass series.

A sleek and modern floor-standing fan coil unit from the Silver Glass series.

The fan coil units will effectively complement a heating system employing a heat pump. The equipment does not require high water temperature to heat the house, thus saving your costs.

Key advantages:

Glass front panel
Ultra- thin body
The unit frame is made of 0,8-1 mm gauge metal sheet
Low noise level
Integrated housing for the thermostat
DC motor
Class G1 air filters designed for easy removal for trouble-free cleaning and maintenance purposes
The heat exchanger coil consists of copper tubes and brass manifolds: the tubes are equipped with corrugated aluminum fins
Equipped with a removable drain pan
Aluminum grille with magnetic fastening
Optional: rear glass panel (open-space installation)

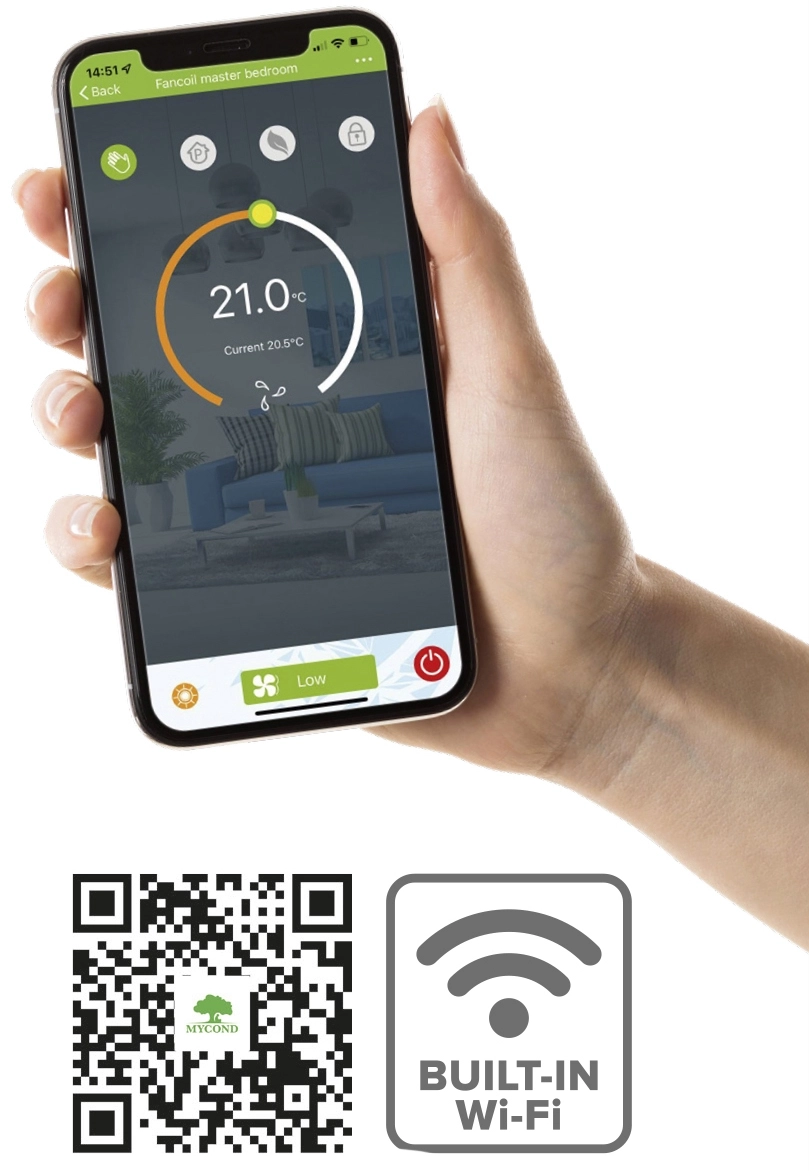

Thermostat (optional)

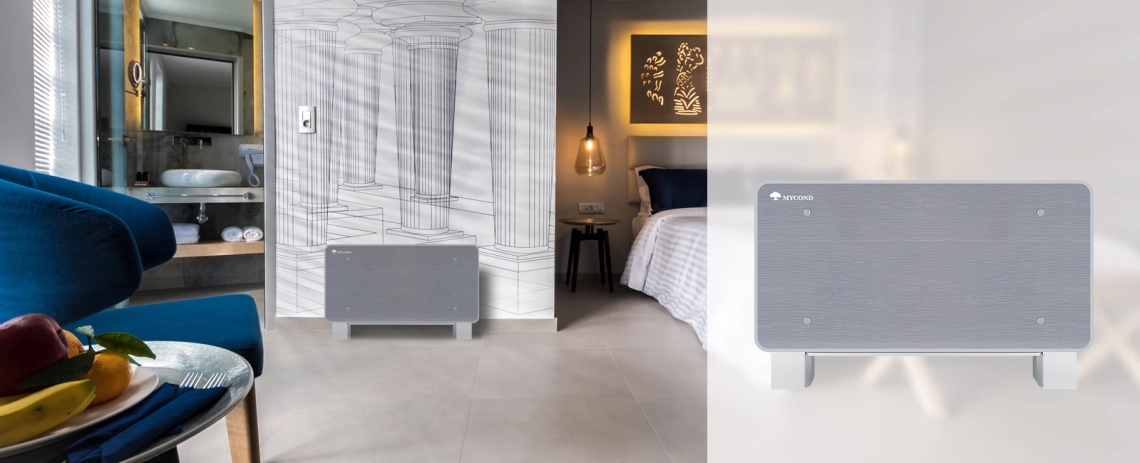

Stylish floor-standing fan coil unit from the Silver Glass series in a modern interior.

Stylish silver glass fan coil units designed for modern spaces.

Discover a new dimension of elegance with Mycond!

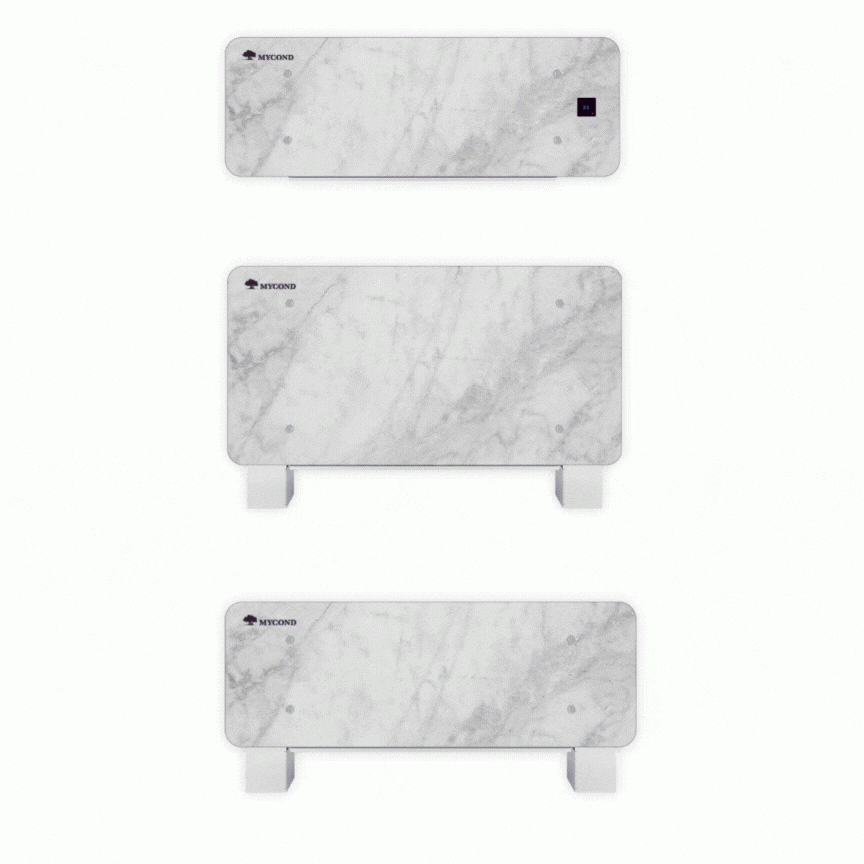

Modern design: elegant printed glass panels fit perfectly into any interior, adding a touch of style and modernity.
You can choose your own image or design on the panel, which we will adapt to your interior.

Modern floor-standing fan coil unit from the Silver Glass series.

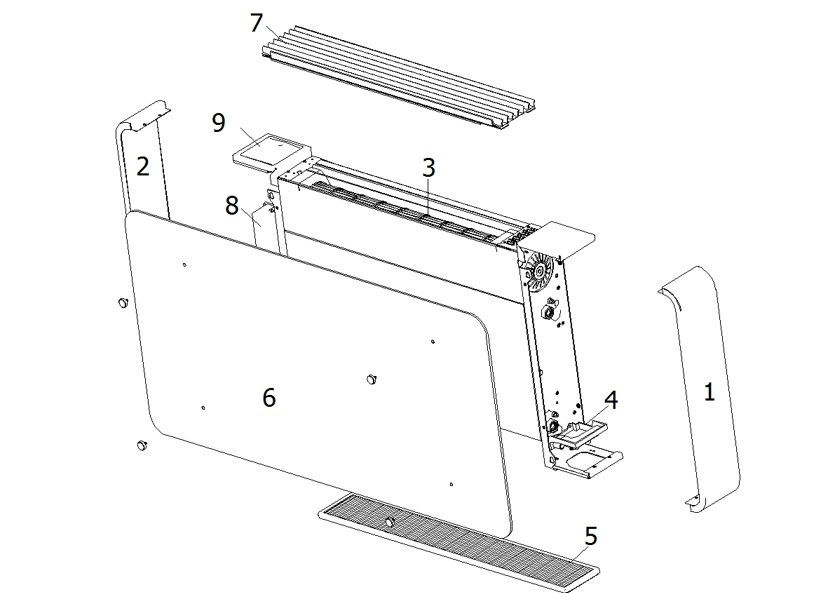

Main components

External parts

Left-side panel
Right-side panel
Fandeck
Auxiliary drain
Filter
Front panel
Aluminum grille
Electric box
Control panel (option)

Stylish ultra-thin floor-standing fan coil unit.

Ultra-thin fan coil unit with modern features.

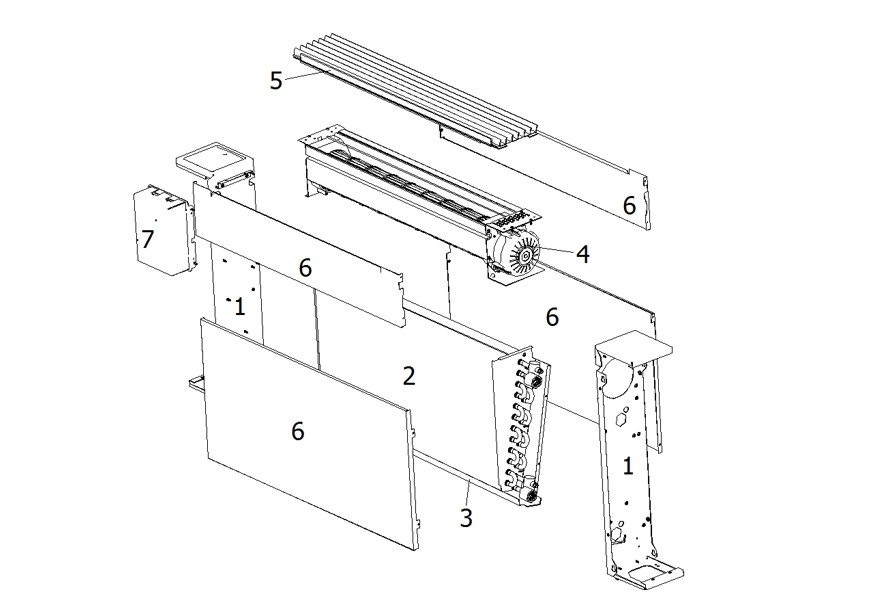

Internal parts

Vertical units

Inner side panel
Main heat-exchanger
Condensate tray
Fandeck
Aluminum grille
Inner front and rear panels
Electric box

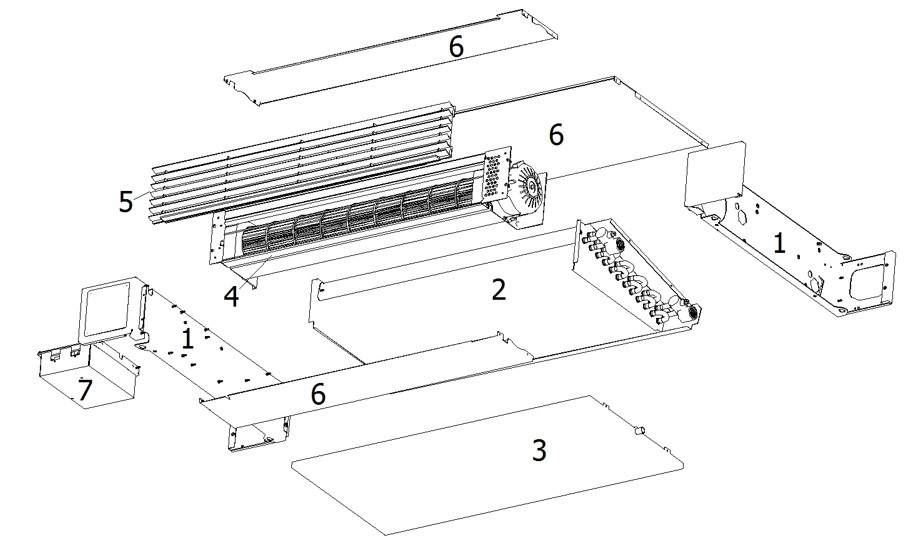

Internal parts

Horizontal unit

Inner side panel
Main heat-exchanger
Condensate tray
Fandeck
Aluminum grille
Inner front and rear panels
Electric box

Internal components of the Silver Glass series floor-standing fan coil.

Technical data

2 pipe system

specifications	Units	Speed	MC-SG-200T2	MC-SG-400T2	MC-SG-600T2	MC-SG-800T2
Air flow rate		Supermax	250	390	510	620
		Max (*)	180	315	450	540
	^m3/h	Med (*)	120	230	350	450
		Min (*)	80	155	240	310
		Static	10	18	25	32
Total cooling capacity		Supermax	1.19	2.12	2.90	3.73
		Max	0.88	1.81	2.70	3.38
	kW	Med	0.79	1.45	2.20	2.75
		Min	0.45	0.98	1.70	2.13
Sensible capacity		Supermax	0.87	1.56	2.16	2.97
		Max	0.69	1.35	2.00	2.70
	kW	Med	0.60	1.10	1.68	2.30
		Min	0.30	0.70	1.25	1.70
Heating capacity		Supermax	1.55	2.71	3.71	4.71
		Max	1.10	2.40	3.20	4.23
	kW	Med	0.90	1.50	2.40	3.40
		Min	0.61	1.16	1.75	2.41
	V/H/Ph	230 V – 50 Hz - 1Ph
Motor input		Supermax	20	22	24	27
		Max	12	13	14	17
	W	Med	5	6	7	10
		Min	3	4	5	8
Water flow rate		Supermax	204	364	498	639
		Max	151	311	463	580
	l/h	Med	136	249	377	472
		Min	77	168	292	365
Pressure drop		Supermax	15.1	10.2	20.9	19.9
		Max	13.1	8.2	19.0	18.7
	kPa	Med	7.2	6.0	16.5	13.2
		Min	4.1	4.1	13.0	10.0
Coil connection			1/2” GF	1/2” GF	1/2” GF	1/2” GF
Water content	L		0,33	0,59	0,85	1,11
Sound power		Supermax	55.0	56.0	57.1	58.3
		Max	51.3	52.2	52.4	53.3
	dB(A)	Med	44.6	45.5	46.6	48.6
		Min	37.5	38.6	40.5	38.7
Sound pressare		Supermax	38.0	39.0	40.1	41.3
		Max	34.3	35.2	35.4	36.3
	dB(A)	Med	27.6	28.5	29.6	31.6
		Min	20.5	21.6	23.5	21.7

COOLING MODE
Room:27° C – 47% R.H. Water temp. (in/out):7/12°C
HEATING MODE
Room:20° C. Water temp. in:50.
(*) Declared values are relative to standard settings at 1500, 900 and 600 RPM. It is always possible to change the air flow, changing dip switch setting in the PCB.

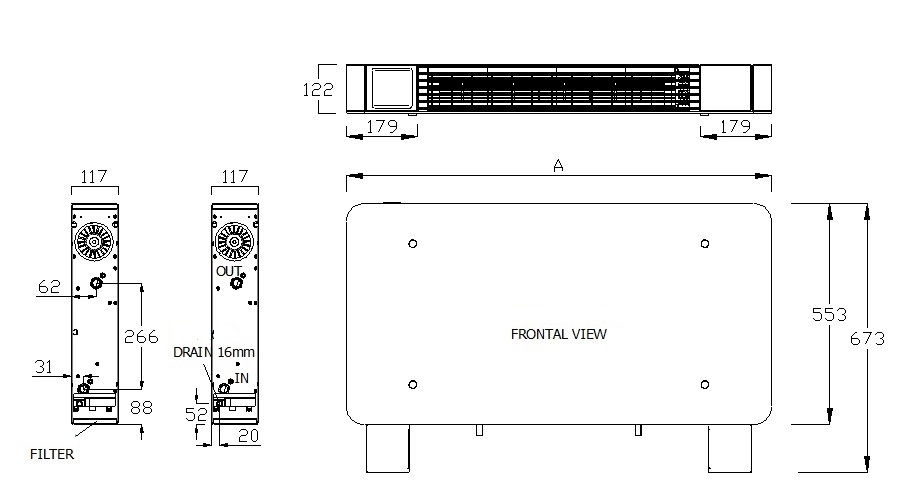

Dimensions

vertical mounting

Sleek floor-standing fan coil unit from the Silver Glass series.

specifications	Units	MC-SG-200T2	MC-SG-400T2	MC-SG-600T2	mC-SG-800T2
A	mm	681	873	1065	1257
Net weight	kg	14	18	21	25
Gross weight	kg	18	21	25	29

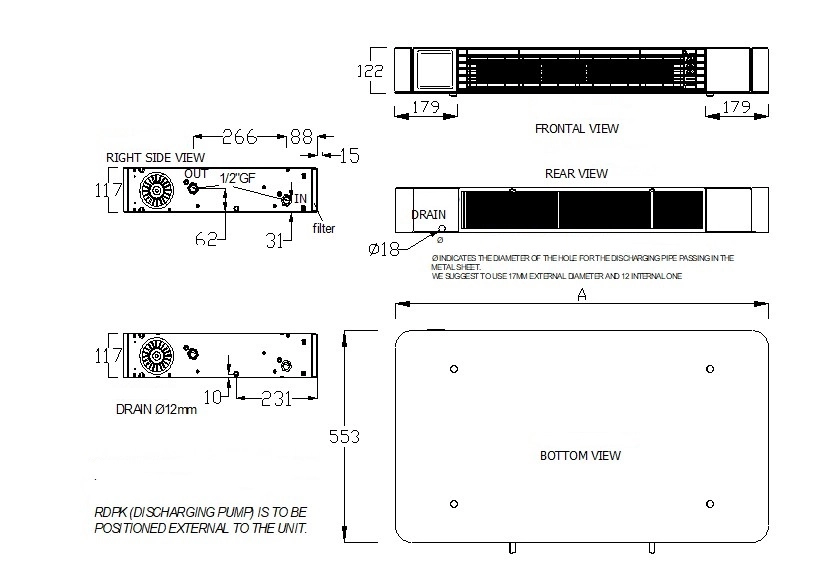

Dimensions

Horizontal mounting

Dimensions of Silver Glass series floor-standing fan coil unit.

Specifications	Units	MC-SG-200T2	MC-SG-400T2	MC-SG-600T2	MC-SG-800T2
A	mm	681	873	1065	1257
Net weight	kg	14	18	21	25
Gross weight	kg	18	21	25	29
